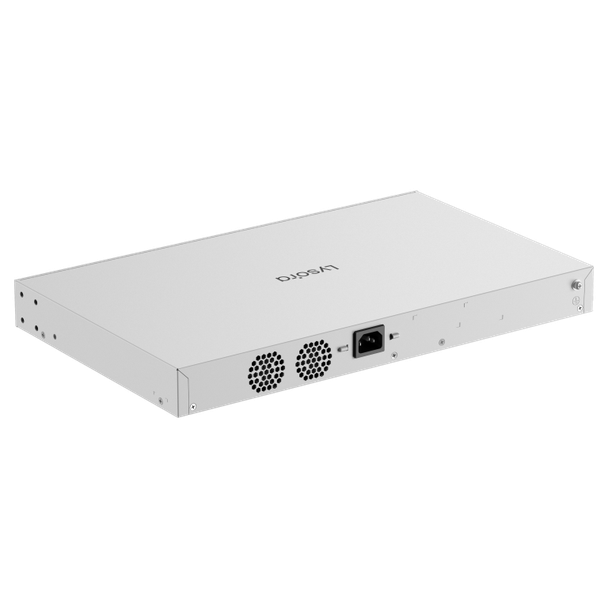

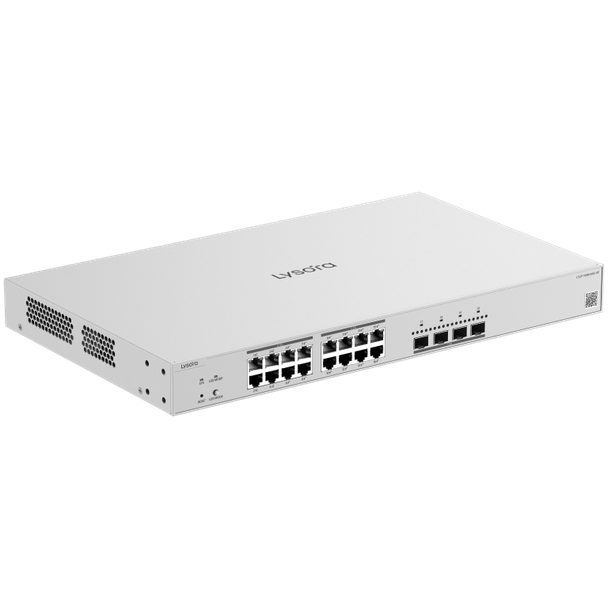

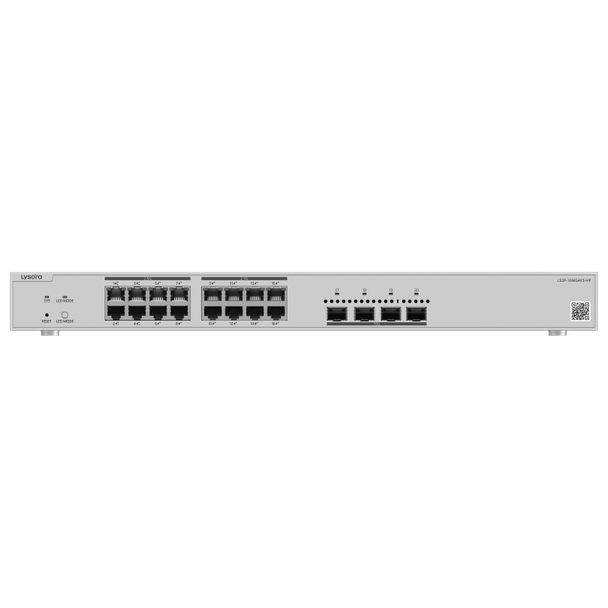

Lysora LS2P-16MG4XS-HP 16-Port Multi-Gigabit Layer 2+ Managed PoE++ Switch
The Lysora LS2P-16MG4XS-HP is a high-performance Layer 2+ managed PoE switch designed for larger networks and bandwidth-intensive applications. It combines 16× 2.5 Gigabit RJ45 ports, 4× 10 Gigabit SFP+ uplink ports, and a substantial 370W PoE power budget.
With PoE++ available on ports 1–4 and PoE+ on ports 5–16, the switch is ideal for demanding IP surveillance, access control, wireless networking, intercom, and other high-bandwidth PoE applications.
High-Performance Multi-Gigabit Networking
- 16× 2.5GbE RJ45 Ports — More bandwidth than standard Gigabit Ethernet
- 4× 10G SFP+ Ports — High-speed uplinks for switches, servers, NVRs, and network infrastructure
- 4× PoE++ Ports — Higher-power PoE for demanding network devices
- 12× PoE+ Ports — Power cameras, access control, intercoms, and other PoE devices
- 370W PoE Budget — Built to support larger deployments with multiple powered devices
General
| Model |
LS2P-16MG4XS-HP |
| Product Type |
Layer 2+ Managed Multi-Gigabit PoE Switch |
| Total Network Interfaces |
20 |
| Dimensions |
440 x 267.5 x 43.6 mm (17.32 x 10.53 x 1.72 in.) |
| Net Weight |
3.6 kg (7.94 lbs.) |
| Packaged Weight |
5.24 kg (11.55 lbs.) |
| Enclosure |
Metal |
| Mounting |
Rack or desktop |
| Cooling |
2 fixed fans, left-to-rear airflow |
| Warranty |
3 Years |
Ethernet Ports & PoE
| Multi-Gigabit RJ45 Ports |
16 x 10/100/1000/2500BASE-T |
| PoE++ Output Ports |
4 x PoE/PoE+/PoE++ (Ports 1–4) |
| PoE+ Output Ports |
12 x PoE/PoE+ (Ports 5–16) |
| 10GbE SFP+ Ports |
4 |
| Gigabit SFP-Only Ports |
None |
| Combo RJ45/SFP Ports |
None |
| Total PoE Budget |
370W shared across 16 powered ports |
| PoE Power Pins (Ports 1–4) |
1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-) |
| PoE Power Pins (Ports 5–16) |
1–2 (+), 3–6 (-) |
| Maximum Network Interfaces |
20 |
Hardware & Performance
| Switching Capacity |
160 Gbps |
| Packet Forwarding Rate |
119.04 Mpps |
| Packet Buffer |
12 Mbit |
| Processor |
Single-core, 800 MHz |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| MAC Address Table |
16,000 entries |
| Jumbo Frame Size |
Up to 9,216 bytes |
| Mean Time Between Failures |
400,000 hours |
Power
| Power Supply |
Fixed internal AC power supply |
| Rated AC Input |
100–240V AC, 50/60Hz |
| Maximum Input Range |
90–264V AC, 47–63Hz |
| Maximum Input Current |
6A |
| Power Consumption (No PoE Load) |
40W maximum |
| Maximum Power Consumption (Full PoE Load) |
460W |
| Total PoE Output Budget |
370W |
| Heat Dissipation (No PoE Load) |
136.8 BTU/hr |
| Heat Dissipation (Full PoE Load) |
1,573.2 BTU/hr |
Layer 2 Switching & Networking
| Switching Layer |
Layer 2+ Managed |
| IEEE 802.1Q VLAN |
Supported |
| Maximum VLANs |
4,094 |
| Port-Based VLAN |
Supported |
| Voice VLAN |
Supported |
| MAC Address Table |
16,000 entries |
| Spanning Tree Protocols |
STP, RSTP, MSTP |
| Link Layer Discovery |
LLDP / LLDP-MED |
| Link Aggregation |
Static Aggregation and LACP |
| Interface Flow Control |
Supported |
| Port Rate Limiting |
Inbound and outbound |
| Jumbo Frames |
Up to 9,216 bytes |
| Energy Efficient Ethernet |
Supported |
| Cable Diagnostics |
Supported |
IP Routing & Services
| IPv4 Static Routing |
Supported, up to 64 routes |
| IPv6 Static Routing |
Supported, up to 64 routes |
| IPv4 Host Route Table |
6,000 entries |
| IPv4 Network Route Table |
512 entries |
| IPv6 Network Route Table |
128 entries |
| ARP Table |
1,000 entries |
| DHCP Client |
Supported |
| DHCP Server / Relay |
Not supported |
| OSPFv2 / OSPFv3 |
Not supported |
| IPv4 / IPv6 Ping & Traceroute |
Supported |
| DNS Client |
IPv4 and IPv6 supported |
Multicast & Quality of Service
| IGMP Snooping |
IGMPv1, IGMPv2, IGMPv3 |
| IGMP Filtering |
Supported |
| 802.1p Priority Classification |
Supported |
| DSCP Priority Classification |
Supported |
| Standard ACL |
Supported |
| Extended ACL |
Supported |
| Queue Scheduling |
SP, WRR, SP+WRR |
| Congestion Avoidance |
Tail Drop |
Security & Traffic Protection
| 802.1X Authentication |
Supported |
| MAC-Based 802.1X Authentication |
Supported |
| Port-Based 802.1X Authentication |
Supported |
| RADIUS |
Supported |
| Port Isolation |
Supported |
| DHCP Snooping |
Supported |
| IP-MAC-Port Binding |
Supported |
| ARP Anti-Spoofing |
Supported |
| IP Source Guard |
Supported |
| Broadcast Storm Control |
Supported |
| Multicast Storm Control |
Supported |
| Unknown Unicast Storm Control |
Supported |
| CPU Protection Policy |
Supported |
| Loop Prevention |
Supported |
Management & Monitoring
| Cloud Management |
Lysora Cloud |
| Mobile App Management |
Supported |
| Local Web Management |
Supported |
| HTTPS Login |
Supported |
| SNMP |
SNMPv1, v2c, v3 |
| Syslog / RLOG |
Supported |
| Port Mirroring |
Supported |
| Self-Organizing Network |
Supported |
| PoE Watchdog |
Supported |
| Camera Detection |
Supported |
| PoE Failure Monitoring |
Supported |
| PoE Power Overload Monitoring |
Supported |
| Cloud-Based Auto-Recovery |
Supported |
| Firmware Upgrade |
Local and online |
| NTP Client |
Supported |
Environmental & Reliability
| Operating Temperature |
0°C to +50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to +70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% RH, non-condensing |
| Operating Altitude |
-500 m to +5,000 m |
| Service Port Surge Protection |
±6 kV common mode |
| Power Connector Surge Protection |
±6 kV common and differential mode |
| ESD Protection |
6 kV contact discharge; 8 kV air discharge |
| MTBF |
400,000 hours |
| Cooling |
2 fixed fans, left-to-rear airflow |
Compliance & Certifications
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC, cTUVus |
| EMC Standards |
FCC 47 CFR Part 15 Subpart B; ICES-003 Issue 7 |
| Safety Standard |
UL 62368-1:2019 |
Package Contents
| LS2P-16MG4XS-HP Switch |
1 |
| User Manual |
1 |
| Warranty Card |
1 |
| Rubber Pads |
4 |
| Rack-Mount Brackets |
2 |
| Mounting Screws |
8 x M4 x 8 mm |
| Grounding Cable |
1 x 1 m (3.28 ft.) |
| Power Cord |
1 x 1.5 m (4.92 ft.) |
| Power Cord Retention Clip |
1 |
Note: The 370W PoE power budget is shared across all 16 powered RJ45 ports. Ports 1–4 support PoE++, while ports 5–16 support PoE/PoE+. Total connected device power consumption must remain within the available shared budget and applicable individual port limits. The four 10GbE SFP+ uplinks are independent interfaces. Actual performance and supported features may vary depending on firmware, connected devices, and network configuration. Specifications are subject to manufacturer updates.
