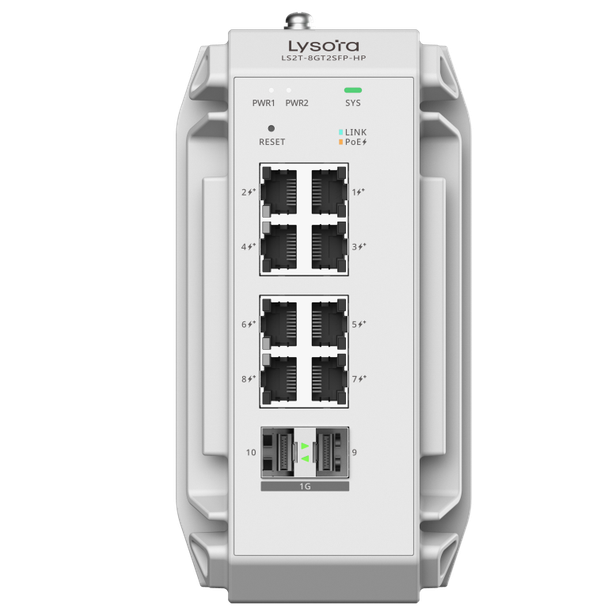

Lysora LS2T-8GT2SFP-HP 8-Port Industrial Layer 2 Managed PoE+ Switch
The Lysora LS2T-8GT2SFP-HP is a rugged, industrial-grade Layer 2 managed PoE+ switch designed for surveillance, access control, and network deployments in harsh operating environments. It features 8× Gigabit PoE+ ports, 2× SFP uplink ports, and a 240W total PoE power budget.
All eight RJ45 ports support PoE+ up to 30W per port, making the switch ideal for powering IP cameras, access control devices, intercoms, wireless equipment, and other PoE-powered network devices.
Built for Harsh Environments
The LS2T-8GT2SFP-HP is the hardened industrial version of Lysora's LS2 Series switches . It is engineered for demanding environments where temperature, electrical surges, and installation conditions can exceed the capabilities of a standard commercial switch.
General
| Model |
LS2T-8GT2SFP-HP |
| Product Type |
Industrial Layer 2 Managed Gigabit PoE+ Switch |
| Dimensions |
85 x 132 x 165 mm (3.35 x 5.20 x 6.50 in.) |
| Net Weight |
1.42 kg (3.13 lbs.) |
| Packaged Weight |
1.91 kg (4.21 lbs.) |
| Enclosure |
Metal, IP40 rated |
| Mounting |
DIN rail or wall |
| Cooling |
Fanless, natural cooling |
| Warranty |
3 years |
Ethernet Ports & PoE
| Gigabit RJ45 Ports |
8 x 10/100/1000BASE-T |
| PoE Output Ports |
8 x PoE/PoE+ |
| PoE++ Ports |
None |
| Gigabit SFP Ports |
2 x 1GbE SFP |
| 10GbE SFP+ Ports |
None |
| Combo RJ45/SFP Ports |
None |
| Total Network Interfaces |
10 |
| Total PoE Budget |
240W, subject to input voltage and power supply capacity |
| PoE Power Pins |
1–2 (+), 3–6 (-) |
Hardware & Performance
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88 Mpps |
| Packet Buffer |
4.1 Mbit |
| Processor |
Single-core, 500 MHz |
| RAM |
256 MB |
| Flash Memory |
16 MB |
| MAC Address Table |
8,000 entries |
| Jumbo Frame Size |
9,216 bytes |
| Mean Time Between Failures |
400,000 hours |
Power
| Power Input |
12–56V DC |
| Maximum Input Current |
7A |
| Power Supply Options |
DC power adapter or external power module |
| External Power Module |
Not included; sold separately |
| Maximum Consumption, No PoE Load |
20W |
| Maximum Consumption, 12–20V Input |
80W at full load |
| Maximum Consumption, 21–45V Input |
140W at full load |
| Maximum Consumption, 46–56V Input |
260W at full load |
| Maximum PoE Budget |
240W with suitable high-voltage DC input |
Layer 2 Switching & Networking
| Switching Layer |
Layer 2 Managed |
| Maximum VLANs |
4,094 |
| IEEE 802.1Q VLAN |
Supported |
| Port-Based VLAN |
Supported |
| Voice VLAN |
Supported |
| Spanning Tree Protocols |
STP, RSTP, MSTP |
| Link Layer Discovery |
LLDP / LLDP-MED |
| Link Aggregation |
Static aggregation and LACP |
| MAC Address Filtering |
Supported |
| Interface Flow Control |
Supported |
| Port Rate Limiting |
Inbound and outbound |
| Energy Efficient Ethernet |
Supported |
| Cable Diagnostics |
Supported |
| Static IPv4 / IPv6 Routing |
Not supported |
IP Services & Multicast
| ARP Table |
Up to 1,000 entries |
| DHCP Client |
Supported |
| DHCP Server / Relay |
Not supported |
| IPv4 / IPv6 Ping & Traceroute |
Supported |
| DNS Client |
IPv4 and IPv6 |
| IGMP Snooping |
IGMPv1, IGMPv2, basic IGMPv3 |
| IGMP Filtering |
Supported |
Quality of Service
| 802.1p Priority Classification |
Supported |
| DSCP Priority Classification |
Supported |
| Access Control Lists |
Standard and extended ACLs |
| Queue Scheduling |
SP, WRR, SP+WRR |
| Congestion Avoidance |
Tail drop |
Security & Traffic Protection
| 802.1X Authentication |
Supported |
| MAC-Based Authentication |
Supported |
| Port-Based Authentication |
Supported |
| Port Isolation |
Supported |
| DHCP Snooping |
Supported |
| IP-MAC-Port Binding |
Supported |
| ARP Anti-Spoofing |
Supported |
| IP Source Guard |
Supported |
| Broadcast Storm Control |
Supported |
| Multicast Storm Control |
Supported |
| Unknown Unicast Storm Control |
Supported |
| CPU Protection Policy |
Supported |
| Loop Prevention |
Supported |
Management & Monitoring
| Cloud Management |
Lysora Cloud |
| Mobile App Management |
Supported |
| Local Web Management |
Supported |
| HTTPS Login |
Supported |
| SNMP |
SNMPv1, v2c, v3 |
| Syslog / RLOG |
Supported |
| Port Mirroring |
Supported |
| Self-Organizing Network |
Supported |
| Camera Detection |
Supported |
| Cloud-Based Auto-Recovery |
Supported |
| Firmware Upgrades |
Local and online |
| PoE Watchdog |
Not supported |
Environmental & Reliability
| Operating Temperature, Sealed Cabinet |
-40°C to +65°C (-40°F to +149°F) |
| Operating Temperature, 80 LFM Ventilation |
-40°C to +70°C (-40°F to +158°F) |
| Operating Temperature, 200 LFM Ventilation |
-40°C to +75°C (-40°F to +167°F) |
| Operating Temperature, 400 LFM Ventilation |
-40°C to +80°C (-40°F to +176°F) |
| Storage Temperature |
-40°C to +75°C (-40°F to +167°F) |
| Operating Humidity |
5% to 95% RH, non-condensing |
| Ingress Protection Rating |
IP40 |
| Service Port Surge Protection |
±6 kV common mode |
| Power Connector Surge Protection |
±4 kV common mode; ±2 kV differential mode |
| ESD Protection |
6 kV contact; 8 kV air discharge |
| MTBF |
400,000 hours |
| Cooling |
Fanless, natural cooling |
Compliance & Certifications
| NDAA Compliant |
Yes, per manufacturer |
| Certifications |
FCC, IC, cTUVus |
| EMC Standards |
FCC 47 CFR Part 15 Subpart B; ICES-003 Issue 7 |
| Safety Standard |
UL 62368-1:2019 |
Package Contents
| LS2T-8GT2SFP-HP Switch |
1 |
| User Manual |
1 |
| Warranty Card |
1 |
| Mounting Brackets |
2 |
| Mounting Screws |
4 x M3 x 6 mm |
| External Power Module |
Not included; sold separately |
Note: The 240W PoE budget requires an appropriately rated DC power source and is subject to input voltage. The switch accepts 12–56V DC, but full PoE output is not available across the entire input range. This model supports PoE/PoE+ only, not PoE++. Its IP40 rating does not provide weatherproof protection; outdoor installations require a suitable protective enclosure. Maximum operating temperature depends on cabinet ventilation. Power modules and SFP transceivers may be sold separately. Specifications are subject to manufacturer updates.
