Lysora LCST-8GT2SFP-HP 8-Port Industrial Managed PoE++ Switch
The Lysora LCST-8GT2SFP-HP is a rugged, industrial-grade managed PoE switch designed for surveillance and network deployments in harsh operating environments. It features 8× Gigabit RJ45 ports, 2× SFP uplink ports, and a substantial 300W PoE power budget.
Port 1 supports PoE++ up to 60W, while ports 2–8 support PoE+, providing flexible power for IP cameras, wireless equipment, access control, intercoms, and other PoE-powered devices.
Built for Harsh Environments
The LCST-8GT2SFP-HP is the hardened industrial alternative to Lysora's LCS Series switches . It is engineered to operate reliably in environments where a standard commercial network switch may not be suitable.
- -40°C to +75°C Operating Range — Designed for extreme hot and cold environments
- IP40-Rated Enclosure — Provides protection against solid-object intrusion
- 6kV Surge Protection — Helps protect the switch and connected equipment against electrical surges
Ideal for Industrial & Outdoor Deployments
Its hardened design makes the LCST-8GT2SFP-HP an excellent choice for network equipment installed in challenging locations, including:
- Outdoor Equipment Enclosures
- Parking Lots & Garages
General
| Model |
LCST-8GT2SFP-HP |
| Product Type |
Industrial Cloud Managed Gigabit PoE Switch |
| Total Network Interfaces |
10 |
| Dimensions |
50 x 155 x 130 mm (1.97 x 6.10 x 5.12 in.) |
| Net Weight |
0.79 kg (1.74 lbs.) |
| Packaged Weight |
1.10 kg (2.43 lbs.) |
| Enclosure |
Metal |

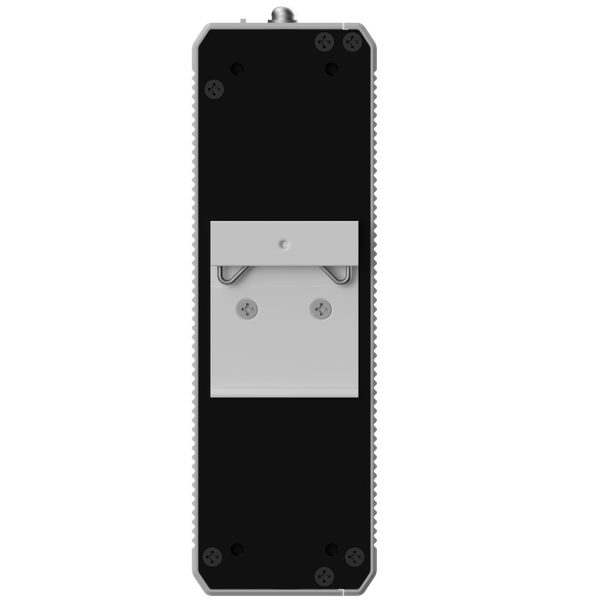

| Mounting |
DIN rail or wall mounting |
| Cooling |
Fanless, natural cooling |
| Warranty |
3 Years |
Ethernet Ports & PoE
| Gigabit RJ45 Ports |
8 x 10/100/1000BASE-T |
| PoE++ Ports |
1 (Port 1) |
| PoE+ Ports |
7 (Ports 2–8) |
| Gigabit SFP Ports |
2 x 1GbE SFP |
| 10GbE SFP+ Ports |
None |
| Combo RJ45/SFP Ports |
None |
| Default PoE Budget |
228W |
| Maximum PoE Budget |
300W, adjustable through web interface |
| PoE Power Pins (Port 1) |
1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-) |
| PoE Power Pins (Ports 2–8) |
1–2 (+), 3–6 (-) |
Hardware & Performance
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.8 Mpps |
| Packet Buffer |
4.1 Mbit |
| Processor |
Single-core, 500 MHz |
| Flash Memory |
8 MB |
| Recommended Camera Capacity |
90 cameras at manufacturer reference setting "200W H.265"; 45 cameras at "400W H.265" |
| Cooling System |
Fanless |
| Mean Time Between Failures |
200,000 hours |
Power

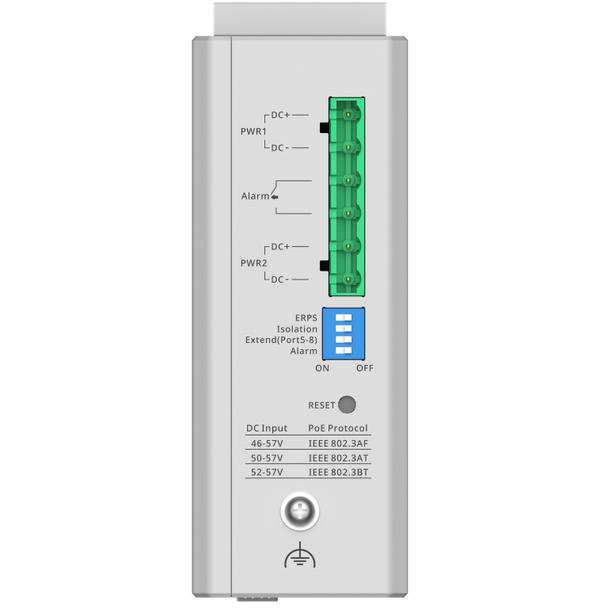

| Power Input |
46–57V DC |
| Rated Input Current |
7A |
| Power Supply Options |
DC power adapter or external power module |
| External Power Module |
Not included; sold separately |
| Maximum Consumption (No PoE Load) |
12W |
| Maximum Consumption (Full PoE Load) |
312W |
| Default PoE Output Budget |
228W |
| Maximum Adjustable PoE Output |
300W |
| Heat Dissipation (No PoE Load) |
41.04 BTU/hr |
| Heat Dissipation (Full PoE Load) |
1,067.04 BTU/hr |
Layer 2 Networking
| IEEE 802.1Q VLAN |
Supported |
| VLAN Configuration on LAN Ports |
Supported |
| Static MAC Address Configuration |
Supported |
| Ethernet Ring Protection Switching |
ERPS supported |
| Maximum Devices per Ring |
50 |
| Layer 2 Ring Convergence |
50 ms |
| Interface Flow Control |
Supported |
| Port Rate Limiting |
Inbound and outbound |
| Jumbo Frame Support |
Supported |
| Energy Efficient Ethernet |
Supported |
| Cable Diagnostics |
Supported |
| DHCP Client |
Supported |
| DNS Client |
Supported |
Security & Traffic Protection
| Port Isolation |
Supported |
| DHCP Snooping |
Supported |
| Broadcast Storm Control |
Supported |
| Multicast Storm Control |
Supported |
| Unknown Unicast Storm Control |
Supported |
| CPU Protection Policy |
Supported |
Management & Monitoring
| Cloud Management |
Lysora Cloud |
| Mobile App Management |
Supported |
| Local Web Management |
Supported |
| Online Firmware Upgrade |
Supported |
| PoE Watchdog |
Supported |
| Camera Detection |
Supported |
| Port Mirroring |
Supported |
| Self-Organizing Network |
Supported |
Environmental & Reliability
| Operating Temperature |
-40°C to +75°C (-40°F to +167°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Operating Humidity |
10% to 90% RH, non-condensing |
| Storage Humidity |
5% to 95% RH, non-condensing |
| Ingress Protection Rating |
IP40 |
| Operating Altitude |
-500 m to +5,000 m |
| Service Port Surge Protection |
±6 kV common mode |
| Power Connector Surge Protection |
±4 kV common mode; ±2 kV differential mode |
| ESD Protection |
15 kV air discharge; 8 kV contact discharge |
| Mean Time Between Failures |
200,000 hours |
| Cooling |
Fanless, natural cooling |
Compliance & Certifications
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC |
| EMC Standards |
EN 55032; EN 61000-3-2; EN 61000-3-3; EN 55035; EN 300 386 |
Package Contents
| LCST-8GT2SFP-HP Switch |
1 |
| User Manual |
1 |
| Warranty Card |
1 |
| Mounting Screws |
4 x M3 x 5 mm |
| Mounting Brackets |
2 |
| External Power Module |
Not included; sold separately |
Note: The LCST-8GT2SFP-HP has a default PoE budget of 228W, configurable up to 300W through the web interface. Available PoE output depends on the connected power supply and the total power requirements of attached devices. The switch requires an appropriate 46–57V DC power source. Its IP40 rating does not indicate weatherproof protection; installation inside a suitable outdoor-rated enclosure is required for exposed locations. SFP transceivers and external power modules may be sold separately. Specifications are subject to manufacturer updates.
