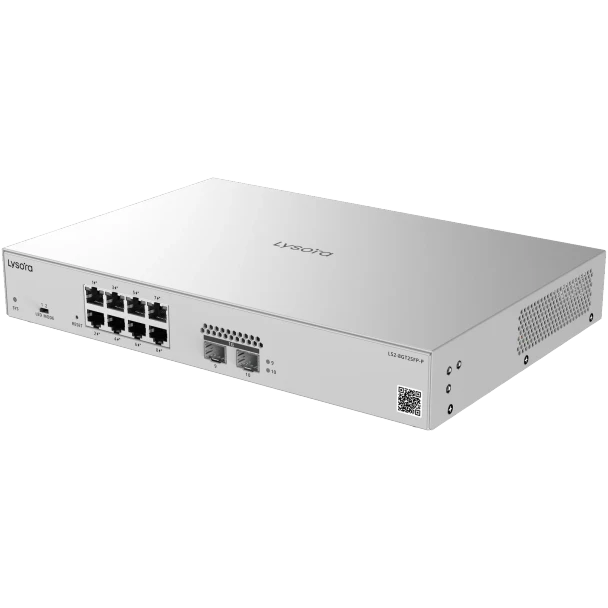

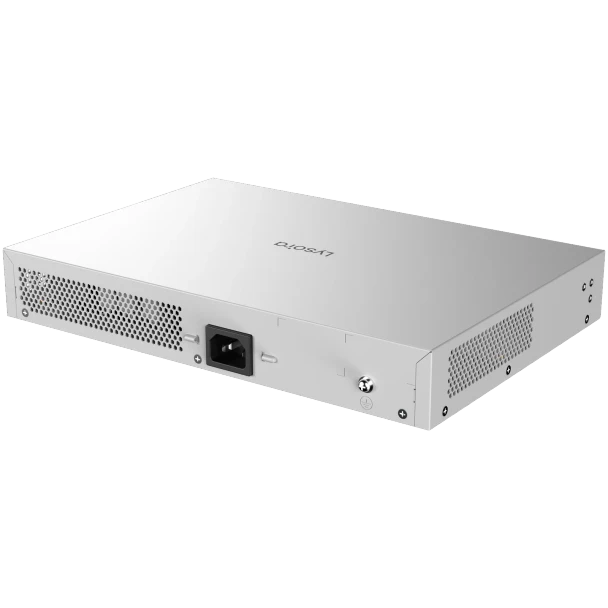

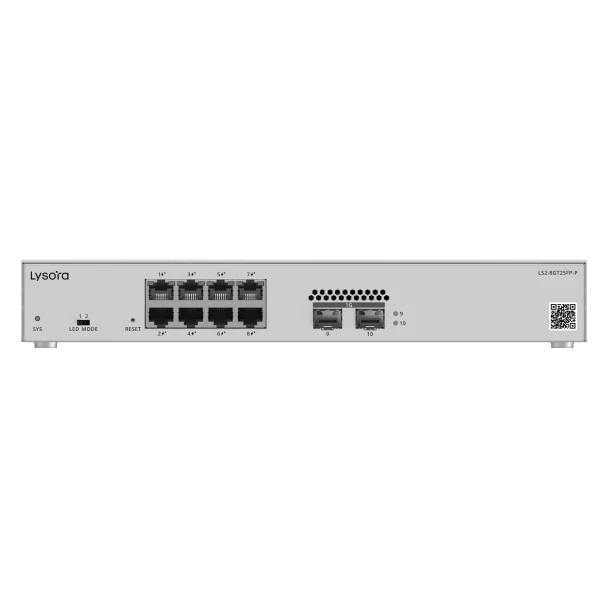

Lysora LS2-8GT2SFP-P 8-Port Layer 2 Managed PoE+ Switch
The Lysora LS2-8GT2SFP-P is an advanced Layer 2 managed PoE+ switch designed for professional surveillance, access control, intercom, and commercial networking applications. It features 8 Gigabit PoE/PoE+ ports, 2× 1G SFP uplink ports, and a 125W total PoE power budget.
Cloud Management & Remote Troubleshooting
Manage the switch remotely through the Lysora Cloud Portal . Installers can monitor and troubleshoot connected devices remotely, helping reduce unnecessary service calls and truck rolls.
- Monitor PoE power consumption by port
- Remotely reboot individual PoE ports
- Monitor connected devices and switch status
- Troubleshoot network and PoE issues remotely
Advanced Layer 2 Performance
Compared with Lysora's LCS Series switches , the LS2 Series provides a larger packet buffer, higher switching capacity, and improved packet-forwarding performance.
Built for more demanding commercial networks, the LS2-8GT2SFP-P provides the performance and management capabilities needed for IP surveillance systems, access control, intercoms, and other PoE-powered network devices.
Advanced Network Features
DHCP Snooping
Designate trusted DHCP ports to help prevent unauthorized DHCP servers from assigning IP addresses on your network, improving overall network security.
Loop Prevention
Detects network loops and blocks affected ports to help prevent broadcast storms and network outages.
Long-Distance PoE — Up to 250 m / 820 ft
Extend PoE connections up to 250 meters (820 feet) for devices located beyond standard Ethernet distances. When enabled, port speed is reduced to 10 Mbps.
PoE Watchdog
Automatically power-cycles a PoE port when no network traffic is detected for a configurable period of 90–1800 seconds. This can recover an unresponsive IP camera or other PoE device without requiring an on-site reboot.
STP / RSTP / MSTP
Supports Spanning Tree Protocol (STP), Rapid STP (RSTP), and Multiple STP (MSTP) for network redundancy, automatic failover, and loop prevention.
Packet Capture & Detailed Syslog
Perform packet captures directly from the switch and access detailed system logs for advanced network diagnostics and troubleshooting.
Key Features
- 8-Port Layer 2 Managed PoE+ Switch
- 8× Gigabit RJ45 PoE/PoE+ Ports
- 2× 1G SFP Uplink Ports
General
| Model |
LS2-8GT2SFP-P |
| Product Type |
Layer 2 Managed Gigabit PoE Switch |
| Total Network Ports |
10 |
| Dimensions |
300 x 205 x 44 mm (11.81 x 8.07 x 1.73 in.) |
| Net Weight |
1.80 kg (3.97 lbs.) |
| Packaged Weight |
2.50 kg (5.51 lbs.) |
| Enclosure |
Metal |
| Mounting |
Rack or desktop |
| Cooling |
Fanless, natural cooling |
| Warranty |
3 Years |
Ethernet Ports & PoE
| Gigabit RJ45 Ports |
8 x 10/100/1000BASE-T |
| PoE Output Ports |
8 x PoE/PoE+ |
| Gigabit SFP Ports |
2 x 1GbE SFP |
| Total Network Interfaces |
10 |
| Total PoE Budget |
125W shared across 8 powered ports |
| PoE Power Pins |
1-2 (+), 3-6 (-) |
| 10GbE SFP+ Ports |
None |
Hardware & Performance
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88 Mpps |
| Packet Buffer |
4.1 Mbit |
| Processor |
Single-core, 500 MHz |
| RAM |
512 MB |
| Flash Memory |
16 MB |
| MAC Address Table |
8,000 entries |
| Jumbo Frame Size |
Up to 9,216 bytes |
| Mean Time Between Failures |
400,000 hours |
Power
| Power Supply |
Internal AC power supply |
| Rated AC Input |
100–240V AC, 50/60Hz |
| Maximum Input Range |
90–264V AC, 47–63Hz |
| Maximum Input Current |
2.5A |
| Power Consumption (No PoE Load) |
11W |
| Maximum Power Consumption (Full PoE Load) |
145W |
| Total PoE Output Budget |
125W |
| Heat Dissipation (No PoE Load) |
37.62 BTU/hr |
| Heat Dissipation (Full PoE Load) |
495.9 BTU/hr |
Layer 2 Switching & Networking
| Switching Layer |
Layer 2 Managed |
| IEEE 802.1Q VLAN |
Supported |
| Maximum VLANs |
4,094 |
| Port-Based VLAN |
Supported |
| Voice VLAN |
Supported |
| MAC Address Table |
8,000 entries |
| Spanning Tree Protocols |
STP, RSTP, MSTP |
| Ethernet Ring Protection Switching |
ERPS supported |
| Link Layer Discovery |
LLDP / LLDP-MED |
| Link Aggregation |
Static Aggregation and LACP |
| Interface Flow Control |
Supported |
| Port Rate Limiting |
Inbound and outbound |
| Jumbo Frames |
Up to 9,216 bytes |
| Energy Efficient Ethernet |
Supported |
| Cable Diagnostics |
Supported |
IP Services & Routing
| ARP Table |
Up to 1,000 entries |
| DHCP Client |
Supported |
| DHCP Server |
Not supported |
| DHCP Relay |
Not supported |
| IPv4 / IPv6 Ping and Traceroute |
Supported |
| DNS Client |
IPv4 and IPv6 |
| IPv4 / IPv6 Static Routing |
Not supported |
| OSPF Routing |
Not supported |
Multicast & Quality of Service
| IGMP Snooping |
IGMPv1, IGMPv2, Basic IGMPv3 |
| IGMP Filtering |
Supported |
| 802.1p Priority Classification |
Supported |
| DSCP Priority Classification |
Supported |
| Standard ACL |
Supported |
| Extended ACL |
Supported |
| Queue Scheduling |
SP, WRR, SP+WRR |
| Congestion Avoidance |
Tail Drop |
Security & Traffic Protection
| 802.1X Authentication |
Supported |
| MAC-Based 802.1X Authentication |
Supported |
| Port-Based 802.1X Authentication |
Supported |
| RADIUS |
Supported |
| Port Isolation |
Supported |
| DHCP Snooping |
Supported |
| IP-MAC-Port Binding |
Supported |
| ARP Anti-Spoofing |
Supported |
| IP Source Guard |
Supported |
| Broadcast Storm Control |
Supported |
| Multicast Storm Control |
Supported |
| Unknown Unicast Storm Control |
Supported |
| CPU Protection Policy |
Supported |
| Loop Prevention |
Supported |
Management & Monitoring
| Cloud Management |
Lysora Cloud |
| Mobile App Management |
Supported |
| Local Web Management |
Supported |
| HTTPS Login |
Supported |
| SNMP |
SNMPv1, v2c, v3 |
| Syslog |
Supported |
| Port Mirroring |
Supported |
| Self-Organizing Network |
Supported |
| PoE Watchdog |
Supported |
| Camera Detection |
Supported |
| PoE Failure Monitoring |
Supported |
| PoE Power Overload Monitoring |
Supported |
| Cloud-Based Auto-Recovery |
Supported |
| Firmware Upgrade |
Local and online |
| NTP Client |
Supported |
Environmental & Reliability
| Operating Temperature |
0°C to +50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to +70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% RH, non-condensing |
| Storage Humidity |
5% to 95% RH, non-condensing |
| Operating Altitude |
-500 m to +5,000 m |
| Service Port Surge Protection |
±6 kV common mode |
| Power Connector Surge Protection |
±6 kV common and differential mode |
| ESD Protection |
6 kV contact discharge; 8 kV air discharge |
| MTBF |
400,000 hours |
| Cooling |
Fanless, natural cooling |
Compliance & Certifications
| NDAA Compliant |
Yes |
| Certifications |
FCC, ISED, cTUVus, VCCI, TEC |
| EMC Standards |
VCCI-CISPR 32:2016; VCCI-32-1:2016 |
Package Contents
| LS2-8GT2SFP-P Switch |
1 |
| User Manual |
1 |
| Warranty Card |
1 |
| Rubber Pads |
4 |
| Rack-Mount Brackets |
2 |
| Mounting Screws |
6 x M3 x 6 mm |
| Grounding Cable |
1 x 1 m (3.28 ft.) |
| Power Cord |
1 x 1.8 m (5.91 ft.) |
| Power Cord Retention Clip |
1 |
Note: The 125W PoE power budget is shared across all eight PoE output ports. Connected device consumption must remain within the total available budget and individual port limits. The two SFP ports provide Gigabit connectivity, not 10GbE. This is a Layer 2 managed switch and does not support IPv4/IPv6 static routing. Specifications and available features may vary by firmware and regional hardware version.
