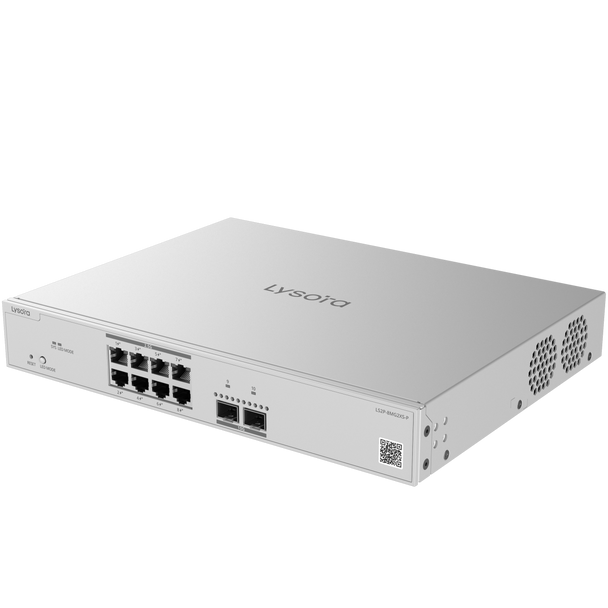

Lysora LS2P-8MG2XS-P 8-Port Multi-Gigabit L2 Managed Switch, 2 x SFP+ Uplink Ports

LS2P-8MG2XS-P
8-Port Layer 2 Managed PoE Switch with 125 W PoE Budget
- 8-Port Multi-Gigabit Layer 2 Managed Switch, 2 x SFP+ Uplink Ports
- 1 x fixed power supply module (Rated voltage range: 100 V AC to 240 V AC)
- Maximum power consumption
- No PoE load: <27W
- Full PoE load: <278W

  • SKU: LS2P-8MG2XS-P
Description

Lysora LS2P-8MG2XS-P 10-Port Layer 2 Managed 2.5GbE PoE+ Switch with 2 x 10GbE SFP+ Uplinks

The Lysora LS2P-8MG2XS-P is a professional Layer 2 managed multi-Gigabit PoE switch designed for high-performance wireless networks, commercial surveillance systems, offices, and enterprise networking installations. Featuring eight 2.5GbE PoE/PoE+ ports and two independent 10GbE SFP+ uplinks, this switch delivers the bandwidth needed for modern Wi-Fi 6 and Wi-Fi 7 access points, high-resolution IP cameras, and other demanding network devices.

With 80 Gbps switching capacity, advanced Layer 2 management, and centralized Lysora Cloud monitoring, the LS2P-8MG2XS-P provides a powerful yet cost-effective solution for professional installers. Features such as VLAN segmentation, link aggregation, static routing, PoE watchdog, and camera detection give integrators greater control over network performance while simplifying remote maintenance and troubleshooting.

Key Features

  • 10-port Layer 2 managed multi-Gigabit PoE switch
  • 8 x 10/100/1000/2500 Mbps RJ45 ports with IEEE 802.3af/at PoE/PoE+ output
  • 2 x independent 10GbE SFP+ fiber uplink ports
  • 240W shared PoE budget listed in detailed manufacturer specifications (confirmation recommended)
  • 80 Gbps switching capacity and 58.72 Mpps forwarding rate
  • Support for up to 4,094 VLANs
  • 16,000-entry MAC address table
  • STP, RSTP, and MSTP for network loop prevention
  • Static link aggregation and LACP support
  • IPv4 and IPv6 static routing
  • IGMP snooping for multicast traffic management
  • Advanced QoS with 802.1p and DSCP traffic prioritization
  • 802.1X authentication, DHCP snooping, and IP source guard
  • PoE watchdog and camera detection for surveillance network management
  • Centralized management through Lysora Cloud, mobile app, or local web interface
  • SNMPv1/v2c/v3 and Syslog support
  • Rack-mountable metal enclosure with dual cooling fans
  • 6 kV common-mode surge protection on service ports
  • NDAA compliant; FCC, IC, and cTUVus certified
  • 3-year manufacturer warranty

Technical Specifications

General

Model LS2P-8MG2XS-P
Product Type Layer 2 Managed Multi-Gigabit PoE Switch
Total Network Ports 10
Dimensions 300 x 233 x 43.6 mm (11.81 x 9.17 x 1.72 in.)
Net Weight 2.64 kg (5.82 lbs.)
Packaged Weight 3.45 kg (7.61 lbs.)
Enclosure Metal
Mounting Rack or desktop
Cooling 2 fixed fans, left-to-right airflow
Warranty 3 Years

Ethernet Ports & PoE

Multi-Gigabit RJ45 Ports 8 x 10/100/1000/2500BASE-T
PoE Output Ports 8 x IEEE 802.3af/at PoE/PoE+
10GbE SFP+ Ports 2
Combo RJ45/SFP Ports None
Maximum Simultaneous Network Links 10
Total PoE Budget 240W listed in detailed specifications; manufacturer confirmation recommended
PoE Power Pins 1-2 (+), 3-6 (-)
PoE Standards IEEE 802.3af/at
PoE++ Output Not specified

Hardware & Performance

Switching Capacity 80 Gbps
Packet Forwarding Rate 58.72 Mpps
Packet Buffer 12 Mbit
Processor Single-core, 800 MHz
RAM 512 MB
Flash Memory 256 MB
MAC Address Table 16,000 entries
Jumbo Frame Size Up to 9,216 bytes
Mean Time Between Failures 400,000 hours

Power

Power Supply Internal AC power supply
Rated AC Input 100-240V AC, 50/60Hz
Maximum AC Input Range 90-264V AC, 47-63Hz
Maximum Input Current 4.5A
Power Consumption (No PoE Load) 27W
Maximum Power Consumption (Full PoE Load) 278W
PoE Output Budget 240W in detailed technical specifications; verify against product label
Heat Dissipation (No PoE Load) 92.34 BTU/hr
Heat Dissipation (Full PoE Load) 950.76 BTU/hr

Layer 2 Switching & Networking

Switching Layer Layer 2 Managed with Static Routing
IEEE 802.1Q VLAN Supported
Maximum VLANs 4,094
Port-Based VLAN Supported
Voice VLAN Supported
MAC Address Table 16,000 entries
Spanning Tree Protocols STP, RSTP, MSTP
Link Layer Discovery LLDP / LLDP-MED
Link Aggregation Static Aggregation and LACP
Interface Flow Control Supported
Port Rate Limiting Inbound and outbound
Jumbo Frames Up to 9,216 bytes
Energy Efficient Ethernet Supported
Cable Diagnostics Supported

IP Routing & Services

IPv4 Static Routing Supported, up to 64 static routes
IPv6 Static Routing Supported, up to 64 static routes
IPv4 Host Route Table 6,000 entries
IPv4 Network Route Table 512 entries
IPv6 Network Route Table 128 entries
ARP Table 1,000 entries
DHCP Client Supported
DHCP Server / Relay Not supported
OSPFv2 / OSPFv3 Not supported
Ping / Traceroute IPv4 and IPv6 supported
DNS Client IPv4 and IPv6 supported

Multicast & Quality of Service

IGMP Snooping IGMPv1, IGMPv2, IGMPv3
IGMP Filtering Supported
802.1p Priority Classification Supported
DSCP Priority Classification Supported
Standard ACL Supported
Extended ACL Supported
Queue Scheduling SP, WRR, SP+WRR
Congestion Avoidance Tail Drop

Security & Traffic Protection

802.1X Authentication Supported
MAC-Based 802.1X Authentication Supported
Port-Based 802.1X Authentication Supported
RADIUS Supported
Port Isolation Supported
DHCP Snooping Supported
IP-MAC-Port Binding Supported
ARP Anti-Spoofing Supported
IP Source Guard Supported
Broadcast Storm Control Supported
Multicast Storm Control Supported
Unknown Unicast Storm Control Supported
CPU Protection Policy Supported
Loop Prevention Supported

Management & Monitoring

Cloud Management Lysora Cloud
Mobile App Management Supported
Local Web Management Supported
HTTPS Login Supported
SNMP SNMPv1, v2c, v3
Syslog Supported
Port Mirroring Supported
Self-Organizing Network Supported
PoE Watchdog Supported
Camera Detection Supported
PoE Failure Monitoring Supported
PoE Power Overload Monitoring Supported
Cloud-Based Auto-Recovery Supported
Firmware Upgrade Local and online
NTP Client Supported

Environmental & Reliability

Operating Temperature 0°C to +50°C (32°F to 122°F)
Storage Temperature -40°C to +70°C (-40°F to 158°F)
Operating Humidity 10% to 90% RH, non-condensing
Storage Humidity 5% to 95% RH, non-condensing
Operating Altitude -500 m to +5,000 m
Service Port Surge Protection ±6 kV common mode
Power Connector Surge Protection ±6 kV common and differential mode
ESD Protection 6 kV contact discharge; 8 kV air discharge
MTBF 400,000 hours
Cooling Method 2 fixed fans, left-to-right airflow

Compliance & Certifications

NDAA Compliant Yes
Certifications FCC, IC, cTUVus
EMC Standards FCC 47 CFR Part 15 Subpart B; ICES-003 Issue 7
Safety Standard UL 62368-1:2019

Package Contents

LS2P-8MG2XS-P Switch 1
User Manual 1
Warranty Card 1
Rubber Pads 4
Rack-Mount Brackets 2
Mounting Screws 8 x M4 x 8 mm
Grounding Cable 1 x 1 m (3.28 ft.)
Power Cord 1 x 1.5 m (4.92 ft.)
Power Cord Retention Clip 1

Note: The manufacturer currently lists conflicting PoE budgets of 125W in the product heading and 240W in the detailed specifications. Confirm the applicable PoE budget for the supplied hardware before planning connected device loads. The total PoE power budget is shared across all eight PoE output ports, and connected device requirements must remain within the applicable total and individual port limits. Network performance and supported features may vary depending on firmware, connected devices, and network configuration. Specifications are subject to manufacturer updates.
