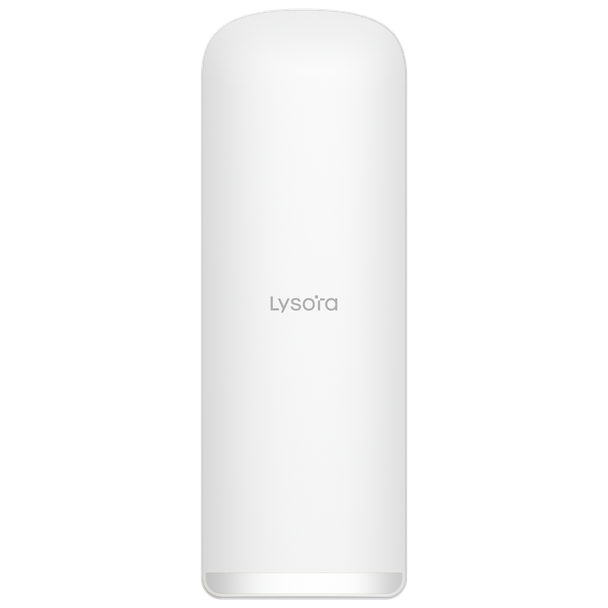

Lysora Base5i 5GHz Outdoor Wireless Base Station with 15dBi 120° Directional Antenna
The Lysora Base5i is an outdoor wireless bridge base station designed to connect multiple remote network locations from a centralized point. Ideal for IP surveillance systems, warehouses, industrial facilities, farms, parking lots, and multi-building properties, the Base5i provides long-distance wireless connectivity without the need for extensive underground cabling.
Featuring a built-in 15 dBi directional antenna with 120-degree horizontal coverage, the Base5i supports wireless transmission distances of up to 5 km (3.11 miles). Three Gigabit Ethernet ports, TDMA technology, and centralized Lysora Cloud management make it a flexible solution for professional point-to-multipoint wireless networking deployments.
Key Features
- 5 GHz outdoor wireless bridge base station
- Up to 867 Mbps theoretical 5 GHz wireless data rate
- Built-in 15 dBi high-gain directional antenna
- Wide 120° horizontal antenna coverage
- Up to 5 km (3.11 miles) wireless transmission distance
- Point-to-point and point-to-multipoint deployment support
- TDMA technology for efficient wireless bridge communication
- 3 x 10/100/1000 Mbps Gigabit Ethernet ports
- Dual-core 880 MHz processor with 128 MB RAM
- IP55 weather-resistant enclosure for outdoor installations
- Multiple power options including 24V passive PoE and PoE/PoE+
- Maximum power consumption of 12W
- Remote monitoring and management through Lysora Cloud
- Built-in antenna alignment and spectrum scanning tools

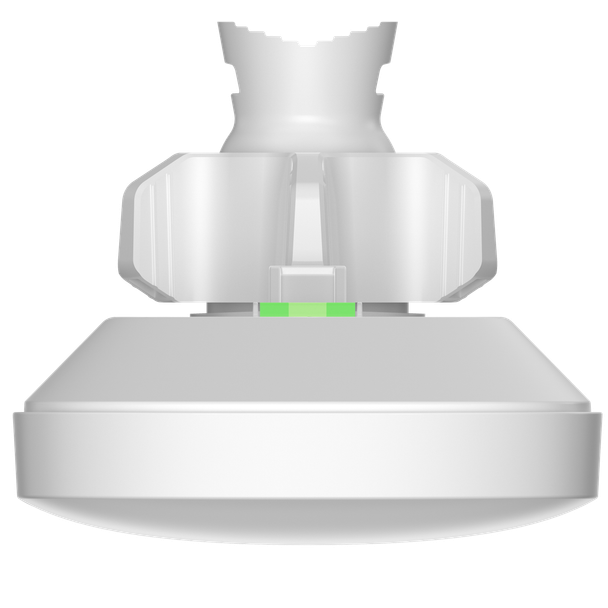

- Wall or pole mounting
- NDAA compliant; FCC, IC, and cTUVus certified
Technical Specifications
General
| Model |
Base5i |
| Product Type |
Outdoor Wireless Bridge Base Station |
| Wi-Fi Standards |
IEEE 802.11 a/b/g/n/ac |
| Dimensions |
355 x 124 x 148 mm (13.98 x 4.88 x 5.83 in.), excluding mounting bracket |
| Net Weight |
0.83 kg (1.83 lbs.) |
| Packaged Weight |
1.61 kg (3.55 lbs.) |
| Maximum Transmission Distance |
5 km (3.11 miles) |
| Mounting |
Wall or pole |
| Operating Modes |
BaseStation and CPE |
Wireless Performance
| Frequency Bands |
2.4 GHz and 5 GHz |
| Spatial Streams |
3 total |
| 2.4 GHz Wi-Fi Protocols |
IEEE 802.11 b/g/n |
| 5 GHz Wi-Fi Protocols |
IEEE 802.11 a/n/ac |
| 2.4 GHz MIMO |
1x1 SISO |
| 5 GHz MIMO |
2x2 MIMO |
| 2.4 GHz Wireless Rate |
Up to 150 Mbps |
| 5 GHz Wireless Rate |
Up to 867 Mbps |
| 2.4 GHz Channel Width |
20/40 MHz |
| 5 GHz Channel Width |
20/40/80 MHz |
| 2.4 GHz Antenna Gain |
2 dBi |
| 5 GHz Antenna Gain |
15 dBi |
| Horizontal Antenna Beamwidth |
120° |
| Vertical Antenna Beamwidth |
13° |
| Maximum 2.4 GHz Transmit Power |
20 dBm |
| Maximum 5 GHz Transmit Power |
29 dBm |
| TDMA |
Supported |
| Antenna Alignment |
Supported |
| Spectrum Scanning |
Supported |
Hardware & Interfaces
| Processor |
Dual-core, 880 MHz per core |
| RAM |
128 MB |
| Flash Memory |
16 MB |

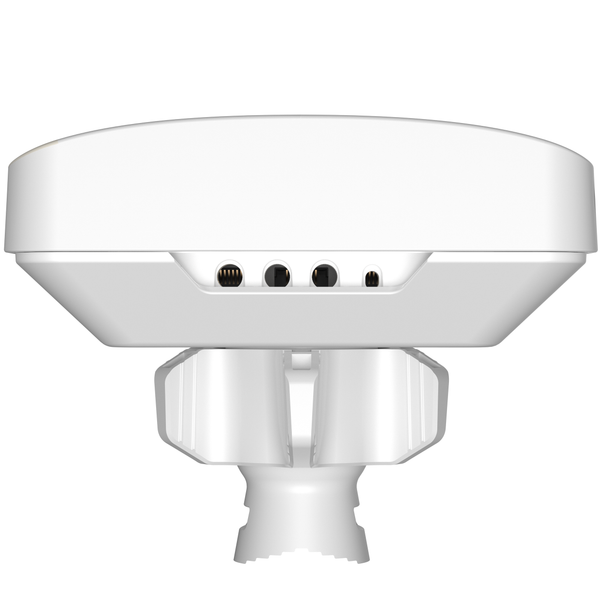

| Ethernet Interfaces |
3 x 10/100/1000BASE-T Gigabit Ethernet ports |
| System Status LED |
1 |
| Ethernet Port LEDs |
3 |
| Wireless Signal LEDs |
3 |
| Reset Button |
1 |
Power
| Maximum Power Consumption |
≤ 12W |
| 24V DC Input |
24V DC, 0.6A (adapter included) |
| Passive PoE Input |
24V passive PoE (injector included) |
| Alternative DC Input |
12V DC, 1A |
| Standard PoE Input |
PoE / PoE+ |
| PoE Power Pins |
1-2 (+), 3-6 (-); 4-5 (+), 7-8 (-) |
| PoE Output Budget |
Not specified |
| Included Power Accessories |
24V DC power adapter and 24V passive PoE injector |
Wireless Modulation
| 802.11b |
BPSK, QPSK, CCK |
| 802.11a/g/n |
BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11ac |
BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
Receiver Sensitivity
| 802.11b |
-91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps) |
| 802.11a/g |
-89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps) |
| 802.11n |
-83 dBm (MCS0), -65 dBm (MCS7), -83 dBm (MCS8), -65 dBm (MCS15) |
| 802.11ac HT20 |
-83 dBm (MCS0), -57 dBm (MCS9) |
| 802.11ac HT40 |
-79 dBm (MCS0), -54 dBm (MCS9) |
| 802.11ac HT80 |
-76 dBm (MCS0), -51 dBm (MCS9) |
Software & Management
| BaseStation Mode |
Supported |
| CPE Mode |
Supported |
| TDMA |
Supported |
| Bridge SSID Hiding |
Supported |
| VLAN |
Supported |
| Antenna Alignment Tool |
Supported |
| Spectrum Scan |
Supported |
| Self-Organizing Network |
Supported |
| Web Management |
Supported |
| Cloud Management |
Lysora Cloud |
| SSH |
Supported |
| SNMP |
Supported |
Environmental & Compliance
| Operating Temperature |
-30°C to +65°C (-22°F to +149°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Operating Humidity |
5% to 95% RH, non-condensing |
| Storage Humidity |
5% to 95% RH, non-condensing |
| Weather Resistance |
IP55 |
| Service Port Surge Protection |
±4 kV common mode |
| Power Connector Surge Protection |
±4 kV common mode; ±2 kV differential mode |
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC, cTUVus |
| Safety Standard |
UL 62368-1:2019 |
Package Contents
| Base5i Wireless Base Station |
1 |
| 24V DC Power Adapter |
1 |
| 24V Passive PoE Injector |
1 |
| Mounting Bracket |
1 |
| Mounting Screws |
4 Phillips self-tapping screws (4.2 x 19 mm) |
| User Manual |
1 |
| Warranty Card |
1 |
Note: Maximum wireless transmission distance and data rates are manufacturer-stated theoretical values. Actual performance depends on line of sight, antenna alignment, interference, terrain, weather conditions, and network configuration. The 120-degree antenna coverage refers to the horizontal antenna beamwidth, not guaranteed wireless coverage throughout that area. Specifications are subject to manufacturer updates.
