Wi-Fi 7 BE5000 dual-band ceiling mount access point
Dual-band 2.4 GHz/5 GHz, high throughput with 5 spatial streams
1 x 100/1000/2500BASE-T port and 1 x 100/1000BASE-T port
AP and routing mode
Unified networking and management based on Lysora Cloud App
Max power consumption < 30 W
802.3at PoE In and 12V DC power supply (PoE injector and DC adapter purchased separately)

  • SKU: L7
In Stock & Ready To Ship!
Current Stock:Only left:
Description

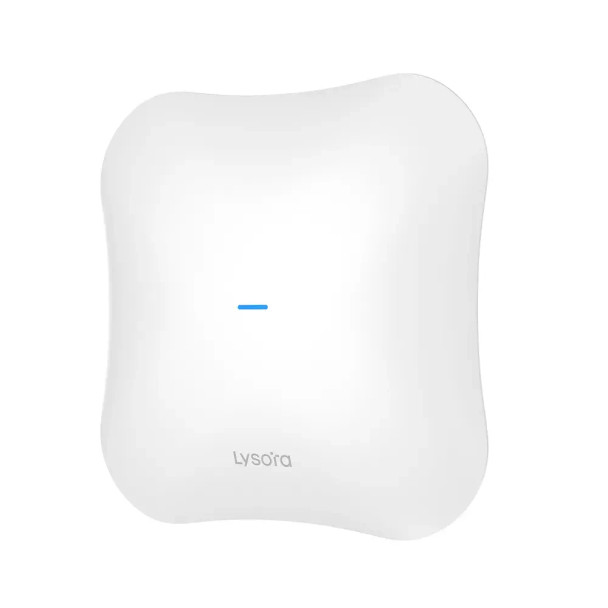

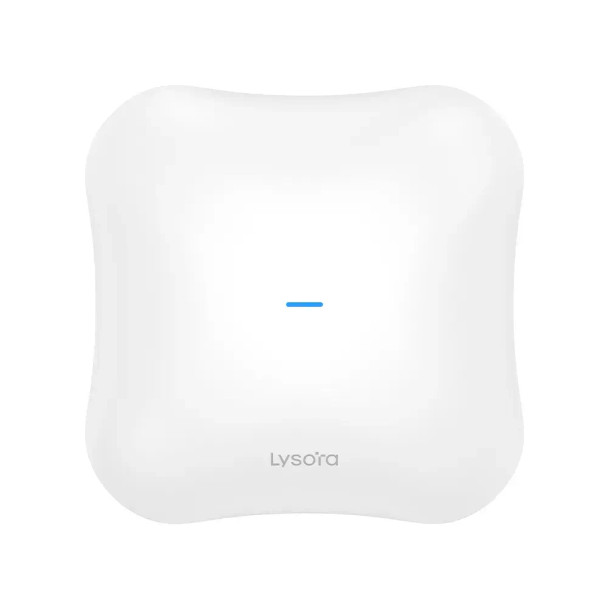

Lysora L7 Wi-Fi 7 BE5040 Dual-Band Ceiling Mount Access Point

The Lysora L7 is a high-performance Wi-Fi 7 access point designed for fast, reliable wireless connectivity in offices, hotels, retail stores, and commercial environments. Featuring 5 spatial streams, up to 5 Gbps combined theoretical wireless throughput, and dual Ethernet interfaces, the L7 delivers powerful networking performance with flexible deployment and centralized cloud management.

Key Features

  • Wi-Fi 7 (802.11be) BE5040 dual-band performance
  • Up to 5,011 Mbps combined theoretical wireless data rate
  • 5 spatial streams: 2x2 MU-MIMO at 2.4 GHz and 3x3 MU-MIMO at 5 GHz
  • 1 x 2.5GbE RJ45 port and 1 x Gigabit Ethernet RJ45 port
  • Up to 145 m² (1,561 sq. ft.) coverage in ideal conditions
  • Up to 511 associated clients (manufacturer-stated maximum)
  • Up to 110 recommended associated clients under specified conditions
  • Multi-Link Operation (MLO) and 4K-QAM support
  • 160 MHz channel bandwidth on 5 GHz
  • PoE+ (802.3at) or 12V DC power input
  • Maximum power consumption of 30W
  • Centralized management through Lysora Cloud and mobile app
  • Wireless meshing and Layer 2/Layer 3 roaming
  • Ceiling or wall mounting hardware included
  • NDAA compliant; FCC, IC, and cTUVus certified

Technical Specifications

General

Model L7
Product Type Indoor Wi-Fi 7 Access Point
Wi-Fi Standard IEEE 802.11 a/b/g/n/ac/ax/be
Dimensions 208 x 208 x 40 mm (8.19 x 8.19 x 1.57 in.)
Weight ≤ 0.75 kg (1.65 lbs.)
Coverage Area 145 m² (1,561 sq. ft.)
Maximum Clients 511 combined
Recommended Clients 110 (Wi-Fi 6, 160 MHz); 100 (80 MHz); 80 (Wi-Fi 5)
Mounting Ceiling or wall (mounts included)

Wireless Performance

Frequency Bands 2.4 GHz and 5 GHz
Spatial Streams 5
MIMO 2x2 MU-MIMO (2.4 GHz); 3x3 MU-MIMO (5 GHz)
2.4 GHz Data Rate Up to 688 Mbps
5 GHz Data Rate Up to 4,323 Mbps
Combined Data Rate Up to 5,011 Mbps
2.4 GHz Channel Width 20/40 MHz
5 GHz Channel Width 20/40/80/160 MHz
2.4 GHz Antenna Gain 3.00 dBi
5 GHz Antenna Gain 4.00 dBi
Maximum Transmit Power 27 dBm (2.4 GHz); 29.7 dBm (5 GHz)
Multi-Link Operation (MLO) Supported
4096-QAM (4K-QAM) Supported
RF Beamforming Supported
Band Steering Supported
Wireless Meshing Supported
OFDMA Supported

Interfaces & Power

Network Interface 1 1 x 2.5GbE RJ45 (10/100/1000/2500BASE-T)
Network Interface 2 1 x Gigabit Ethernet RJ45 (10/100/1000BASE-T)
Power Input 802.3at PoE+ or 12V DC, 2.5A
Power Consumption ≤ 30W
Status Indicator 1 x System Status LED
Reset Button 1
Power Accessories PoE injector and DC adapter sold separately

Software & Networking

Operating Modes Access Point and Router
Maximum SSIDs 8
VLAN 802.1Q supported
Wireless Roaming 802.11k/v/r
Layer 2 Roaming Supported
Layer 3 Roaming Supported
Client Isolation Supported
Wi-Fi Scheduling Supported
Wi-Fi Multimedia (WMM) Supported
Captive Portal Supported
Bandwidth Limiting Supported
Routing Features NAT, DHCP Server, Static IP, PPPoE
Network Diagnostics Ping and Traceroute
Mesh Management Supported

Security

Wireless Security WPA, WPA2, WPA3-SAE, OWE
Authentication PSK and 802.1X
Mixed Security Mode WPA2-PSK/WPA3-SAE
Client Device Isolation Supported

Management

Cloud Management Lysora Cloud
Mobile Management Lysora App
Local Management Web Interface
SNMP Supported
AI Optimization Supported
Self-Organizing Network Up to 300 APs
Unified Network Management Supported

Environmental & Compliance

Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% RH, non-condensing
IP Rating IP41
Surge Protection ±2 kV
NDAA Compliant Yes
Certifications FCC, IC, cTUVus
Safety Standard UL 62368-1:2019

Note: Wireless throughput represents theoretical maximum data rates. Actual performance, coverage, and client capacity depend on installation environment, interference, device capabilities, and network configuration. Wi-Fi 7 features require compatible client devices. Specifications are subject to manufacturer updates.
