5 GHz CPE with 13 dBi Built-in Antenna
- 5 GHz wireless bridge CPE with maximum wireless rate of 867 Mbps
- Equipped with a 13 dBi high-gain directional antenna for stable long-distance transmission
- Supports point-to-multipoint deployment with TDMA and up to 5 CPE clients
- Up to 3 km (1.86 miles) wireless transmission distance
- Three 10/100 Mbps Ethernet ports for flexible connectivity
- IP55 weatherproof enclosure designed for outdoor deployment
- Managed through eWeb and Lysora Cloud for remote monitoring and configuration
- Includes 24 V DC power adapter and PoE injector for easy installation

  • SKU: CPE3-P
In Stock & Ready To Ship!
Current Stock:Only left:
Description

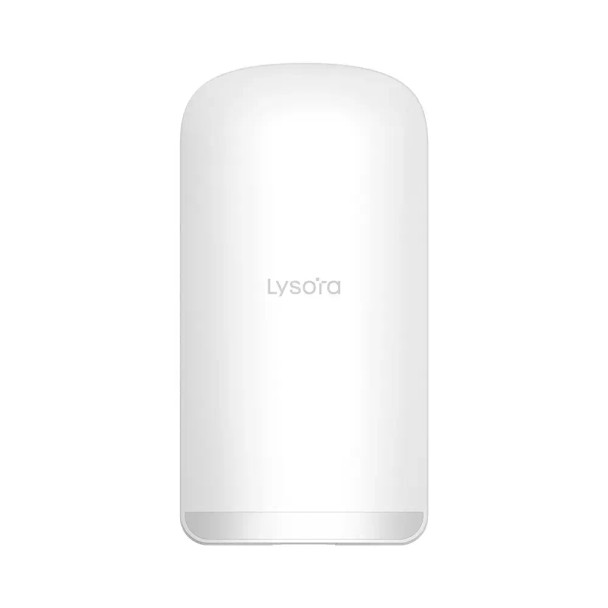

Lysora CPE3-P 5GHz Outdoor Wireless Bridge with 13dBi Directional Antenna

The Lysora CPE3-P is an outdoor wireless bridge designed to extend network connectivity between buildings, remote IP cameras, and other locations where running Ethernet cables is impractical. Featuring a built-in 13 dBi directional antenna, up to 3 km (1.86 miles) wireless transmission distance, and three Ethernet ports with PoE output capability, the CPE3-P provides a flexible solution for surveillance and commercial networking projects.

Supporting point-to-point and point-to-multipoint deployments, the CPE3-P offers TDMA technology, cloud-based remote management, and an IP55 weather-resistant enclosure for reliable outdoor use.

Key Features

  • 5 GHz wireless bridge with up to 867 Mbps theoretical wireless data rate
  • Built-in 13 dBi high-gain directional antenna
  • Up to 3 km (1.86 miles) wireless transmission distance
  • Point-to-point and point-to-multipoint deployment support
  • TDMA technology with support for up to 5 CPE clients
  • 3 x 10/100 Mbps Ethernet ports
  • PoE output capability with 15.4W total power budget across two ports
  • IP55 weather-resistant enclosure for outdoor installations
  • Cloud-based remote monitoring and configuration through Lysora Cloud
  • Built-in antenna alignment and spectrum scanning tools

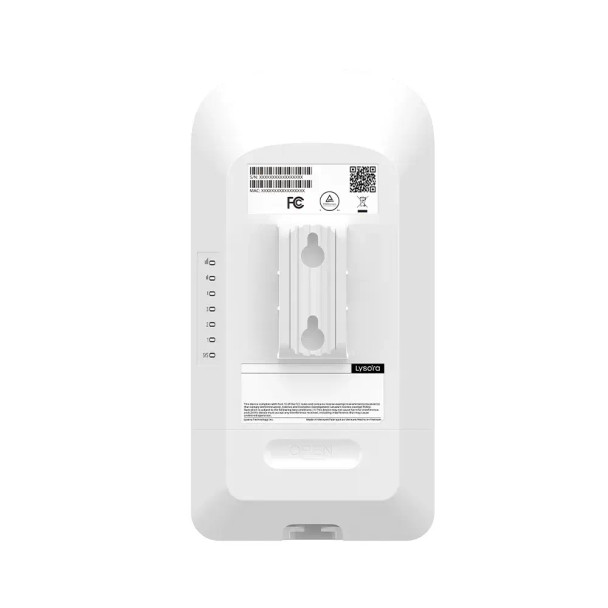

  • Wall or pole mounting options
  • Includes 24V DC power adapter and passive PoE injector
  • NDAA compliant; FCC, IC, and cTUVus certified

Technical Specifications

General

Model CPE3-P
Product Type Outdoor Wireless Bridge CPE
Wireless Standards IEEE 802.11 a/b/g/n/ac
Dimensions 103 x 53.4 x 199 mm (4.06 x 2.10 x 7.83 in.), excluding mounting bracket
Net Weight 0.37 kg (0.82 lbs.)
Packaged Weight 0.91 kg (2.01 lbs.)
Maximum Transmission Distance 3 km (1.86 miles)
Mounting Wall or pole
Deployment Modes BaseStation and CPE

Wireless Performance

Wireless Frequencies 2.4 GHz and 5 GHz
Spatial Streams 3 total
2.4 GHz MIMO 1x1 SISO
5 GHz MIMO 2x2 MIMO
2.4 GHz Wireless Rate Up to 300 Mbps (manufacturer listed)
5 GHz Wireless Rate Up to 867 Mbps
2.4 GHz Channel Width 20/40 MHz
5 GHz Channel Width 20/40/80 MHz
2.4 GHz Antenna Gain 2 dBi
5 GHz Antenna Gain 13 dBi
Horizontal Antenna Beamwidth 30°
Vertical Antenna Beamwidth 30°
Maximum Transmit Power 20 dBm (2.4 GHz); 29 dBm (5 GHz)
TDMA Supported
Point-to-Multipoint Clients Up to 5 CPE clients
Antenna Alignment Supported
Spectrum Scanning Supported

Hardware & Interfaces

Processor Single-core, 575/580 MHz
RAM 64 MB
Flash Memory 16 MB
Ethernet Interfaces 3 x 10/100BASE-T ports
Status LEDs 1 x System LED, 3 x Ethernet LEDs, 3 x Signal LEDs
Reset Button 1

Power & PoE

Power Input Options 24V DC, 1.5A; 24V passive PoE; 12V DC, 1A; PoE/PoE+
Power Consumption 9W without PoE output; 24.4W with PoE output
PoE Output Budget 15.4W total across two ports
PoE Output Conditions Available when powered by 24V passive PoE or 802.3at PoE+. Not available when powered by 12V DC or 802.3af PoE.
PoE Power Pins 1-2 (+), 3-6 (-); 4-5 (+), 7-8 (-)
Included Power Accessories 24V DC power adapter and 24V passive PoE injector

Software & Management

BaseStation Mode Supported
CPE Mode Supported
TDMA Supported
Bridge SSID Hiding Supported
VLAN Supported
Antenna Alignment Tool Supported
Spectrum Scan Supported
Self-Organizing Network Supported
Web Management Supported
Cloud Management Lysora Cloud
SSH Supported
SNMP Not supported

Environmental & Compliance

Operating Temperature -30°C to +55°C (-22°F to +131°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Operating Humidity 5% to 95% RH, non-condensing
Storage Humidity 5% to 95% RH, non-condensing
Weather Resistance IP55
Service Port Surge Protection ±4 kV common mode
Power Connector Surge Protection ±4 kV common mode; ±2 kV differential mode
NDAA Compliant Yes
Certifications FCC, IC, cTUVus
Safety Standard UL 62368-1:2019

Package Contents

CPE3-P Wireless Bridge 1
24V DC Power Adapter 1
24V Passive PoE Injector 1
Mounting Screws 4
Cable Ties 4
User Manual 1
Warranty Card 1

Note: Wireless transmission distance and data rates are manufacturer-stated maximums. Actual performance depends on clear line of sight, antenna alignment, interference, environmental conditions, and network configuration. The Ethernet ports are limited to 100 Mbps each, regardless of the 867 Mbps theoretical wireless link rate. PoE output requires a compatible power source and connected devices. Specifications are subject to change.
