| Physical Specifications |
| Dimensions |
220 × 220 × 45 mm (8.66 × 8.66 × 1.77 in.) |
| Weight |
≤ 1.1 kg (2.43 lbs.) |
| Mounting |

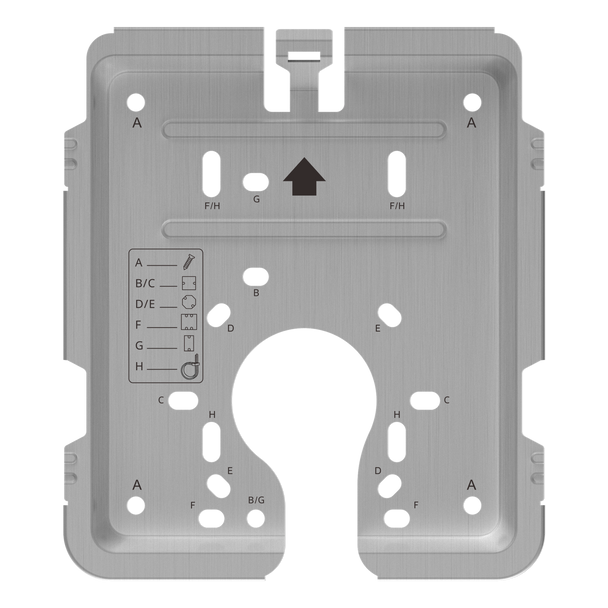

Ceiling or Wall Mounting; Mounting Hardware Included |
| Weather Resistance |
IP41 |
| Lightning / Surge Protection |
±2 kV |
| Wireless Performance |
| Wi-Fi Standards |
IEEE 802.11a/b/g/n/ac/ax/be |
| Wi-Fi Generation |
Wi-Fi 7 |
| Spatial Streams |
8 |
| Coverage Area |
Up to 145 m² (1,560.77 ft²) |
| Maximum Client Count |
128 clients on 2.4 GHz
256 clients on 5 GHz
256 clients on 6 GHz
Up to 600 clients with 2.4 GHz, 5 GHz and 6 GHz enabled |
| Recommended Clients — Wi-Fi 6/7, 160 MHz |
16 clients on 2.4 GHz
84 clients on 5 GHz
100 clients on 6 GHz
Up to 200 clients with all three bands enabled |
| Recommended Clients — Wi-Fi 6, 80 MHz |
16 clients on 2.4 GHz
64 clients on 5 GHz
60 clients on 6 GHz
Up to 140 clients with 2.4 GHz and 5 GHz enabled |
| Recommended Clients — Wi-Fi 5 |
16 clients on 2.4 GHz
64 clients on 5 GHz
Up to 80 clients with 2.4 GHz and 5 GHz enabled |
| Network Interfaces |
| Ethernet Port |
1 × 10/100/1000/2500BASE-T RJ45 Port |
| Fiber Port |
1 × 10GbE SFP+ Port |
| Radio Specifications |
| 2.4 GHz Protocols |
IEEE 802.11b/g/n/ax/be |
| 5 GHz Protocols |
IEEE 802.11a/n/ac/ax/be |
| 6 GHz Protocols |
IEEE 802.11a/ax/be |
| MIMO |
2.4 GHz: 2 × 2 MU-MIMO
5 GHz: 3 × 3 MU-MIMO
6 GHz: 3 × 3 MU-MIMO |
| Channel Width |
2.4 GHz: 20/40 MHz
5 GHz: 20/40/80/160 MHz
6 GHz: 20/40/80/160/320 MHz |
| Maximum Wireless Data Rate |
2.4 GHz: 688 Mbps
5 GHz: 4,323 Mbps
6 GHz: 8,646 Mbps |
| Antenna Gain |
2.4 GHz: 3.60 dBi
5 GHz: 5.90 dBi
6 GHz: 5.20 dBi |
| Maximum Transmit Power |
2.4 GHz: 25 dBm
5 GHz: 25.7 dBm
6 GHz: 22.7 dBm |
| Power |
| Power Method |
PoE+
54V DC, 0.55A |
| Power Adapter |
Included |
| Maximum Power Consumption |
≤ 30W |
| Modulation |
| OFDM |
BPSK at 6/9 Mbps, QPSK at 12/18 Mbps, 16-QAM at 24 Mbps and 64-QAM at 48/54 Mbps |
| DSSS |
DBPSK at 1 Mbps, DQPSK at 2 Mbps and CCK at 5.5/11 Mbps |
| MIMO-OFDM |
BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM and 4096-QAM |
| OFDMA |
Supported |
| Receiver Sensitivity |
| 802.11b |
-91 dBm at 1 Mbps
-88 dBm at 5.5 Mbps
-85 dBm at 11 Mbps |
| 802.11a/g |
-89 dBm at 6 Mbps
-80 dBm at 24 Mbps
-76 dBm at 36 Mbps
-71 dBm at 54 Mbps |
| 802.11n |
-83 dBm at MCS0
-65 dBm at MCS7
-83 dBm at MCS8
-65 dBm at MCS15 |
| 802.11ac |
20 MHz: -83 dBm at MCS0 / -57 dBm at MCS9
40 MHz: -79 dBm at MCS0 / -57 dBm at MCS9
80 MHz: -76 dBm at MCS0 / -51 dBm at MCS9
160 MHz: -76 dBm at MCS0 / -50 dBm at MCS9 |
| 802.11ax |
20 MHz: -85 dBm at MCS0 / -58 dBm at MCS11
40 MHz: -82 dBm at MCS0 / -54 dBm at MCS11
80 MHz: -79 dBm at MCS0 / -52 dBm at MCS11
160 MHz: -76 dBm at MCS0 / -49 dBm at MCS11 |
| 802.11be |
20 MHz: -85 dBm at MCS0 / -52 dBm at MCS13
40 MHz: -82 dBm at MCS0 / -49 dBm at MCS13
80 MHz: -82 dBm at MCS0 / -46 dBm at MCS13
160 MHz: -79 dBm at MCS0 / -44 dBm at MCS13
320 MHz: -76 dBm at MCS0 / -41 dBm at MCS13 |
| Hardware Controls |
| LED |
1 × System Status LED |
| Button |
1 × Reset Button |
| Environmental Specifications |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
5% to 95% RH, Non-Condensing |
| Storage Humidity |
5% to 95% RH, Non-Condensing |
| Operating Modes |
| Router Mode |
Yes |
| Access Point Mode |
Yes |
| Wireless Features |
| Band Steering |
Yes |
| Wireless Meshing |
Yes |
| Wi-Fi Multimedia |
Yes |
| 802.1Q VLAN |
Yes |
| Multi-Link Operation |
Yes |
| 4K-QAM |
Yes |
| RF Beamforming |
Yes |
| Wi-Fi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| Wi-Fi Scheduling |
Yes |
| Roaming |
| 802.11k |
Yes |
| 802.11v |
Yes |
| 802.11r |
Yes |
| Layer 2 Roaming |
Yes |
| Layer 3 Roaming |
Yes |
| Security |
| PSK Authentication |
Yes |
| Wireless Security |
WPA-TKIP, WPA2-AES, WPA-PSK, OWE Enhanced Open, WPA3-SAE and WPA2-PSK/WPA3-SAE |
| 802.1X Authentication |
Yes |
| Network Services |
| Ping |
Yes |
| Traceroute |
Yes |
| NAT |
Yes |
| Static IP Address |
Yes |
| DHCP Server |
Yes |
| PPPoE Dial-Up |
Yes |
| Portal and Mesh Features |
| Mesh Management |
Yes |
| Standalone Captive Portal |
Yes |
| Bandwidth Limiting |
Yes |
| Data Quota |
No |
| Management and Maintenance |
| Maximum APs in Self-Organizing Network |
300 |
| Unified Network Management |
Yes |
| Lysora App Management |
Local and Remote Management |
| Web Management |
Yes |
| Lysora Cloud Management |
Yes |
| SNMP |
Yes |
| AI Optimization |
Yes |
| Cloud Configuration and Monitoring |
Yes |
| Compliance |
| NDAA Compliant |
Yes |
| Safety Standard |
UL 62368-1:2019 |
| RF Compliance |
FCC 47 CFR Part 2 Subpart J
FCC 47 CFR Part 15 Subpart E
IC RSS-247 Issue 3 |
| EMC Compliance |
FCC 47 CFR Part 15 Subpart B
ICES-003 Issue 7 |
| Certifications |
FCC, IC, cTUVus |
| Operating Frequencies |
| United States and Canada |
2400–2472 MHz
U-NII-1: 5150–5250 MHz
U-NII-2A: 5250–5350 MHz
U-NII-2C: 5470–5725 MHz
U-NII-3: 5725–5850 MHz
U-NII-5 through U-NII-8: 5925–7125 MHz |
| Worldwide |
2400–2483.5 MHz
5150–5725 MHz
5925–7125 MHz |
