AX3000 indoor ceiling mount access point
dual-stream and dual-band
one GE port
802.3at PoE In or DC power supply (PoE injector and DC adapter purchased separately)

  • SKU: L6
In Stock & Ready To Ship!
Current Stock:Only left:
Description

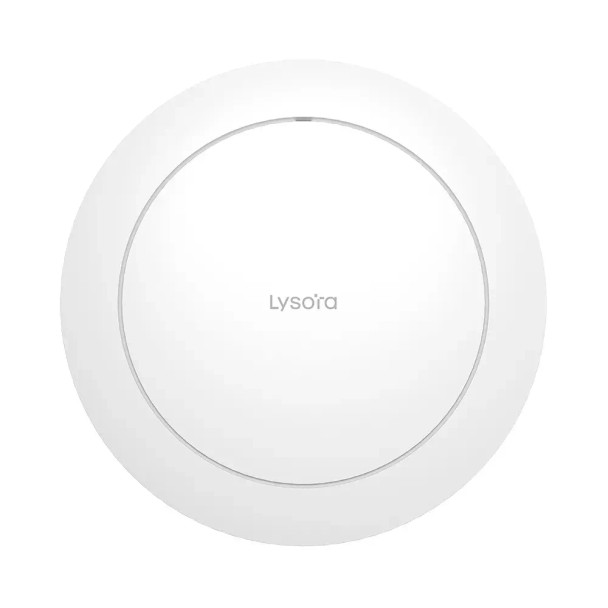

Lysora L6 Wi-Fi 6 AX3000 Dual-Band Ceiling Mount Access Point

The Lysora L6 is a high-performance indoor Wi-Fi 6 access point designed for offices, retail spaces, hospitality environments, and commercial installations. Delivering combined theoretical wireless speeds of approximately 3 Gbps, it provides reliable dual-band connectivity, advanced roaming, and centralized network management through Lysora Cloud.

Key Features

  • Wi-Fi 6 AX3000 dual-band connectivity
  • Up to 2401 Mbps on 5 GHz and 573 Mbps on 2.4 GHz
  • 4 spatial streams with 2x2 MU-MIMO on each band
  • Supports up to 512 connected clients
  • Up to 145 m² (1,561 ft²) coverage in ideal conditions
  • 1 x Gigabit Ethernet RJ45 port
  • PoE/PoE+ or 12V DC power options
  • Cloud-based remote management with Lysora Cloud
  • Wireless meshing and Layer 2/Layer 3 roaming
  • Ceiling or wall mounting hardware included
  • NDAA compliant; FCC and IC certified

Technical Specifications

General Specifications

Model L6
Product Type Indoor Wi-Fi 6 Ceiling Mount Access Point
Wi-Fi Standard IEEE 802.11 a/b/g/n/ac/ax
Spatial Streams 4
Coverage Area 145 m² (1,561 ft²), ideal conditions
Maximum Clients 512 total
2.4 GHz: 64
5 GHz: 512
Dimensions Ø220 x 52.6 mm (Ø8.66 x 2.07 in.)
Weight ≤ 0.5 kg (1.10 lbs.)
Mounting Ceiling or wall (mounts included)

Wireless Performance

Frequency Bands 2.4 GHz and 5 GHz
2.4 GHz Throughput 573 Mbps
5 GHz Throughput 2401 Mbps
MIMO 2.4 GHz: 2x2 MU-MIMO
5 GHz: 2x2 MU-MIMO
Channel Width 2.4 GHz: 20/40 MHz
5 GHz: 20/40/80/160 MHz
Antenna Gain 2.4 GHz: 3.53 dBi
5 GHz: 5.15 dBi
Maximum Transmit Power 25 dBm on each band
Beamforming Supported
Band Steering Supported
Wireless Meshing Supported
Wi-Fi Multimedia WMM supported

Hardware & Power

Network Interface 1 x 1GbE RJ45
Power Supply PoE/PoE+ or DC 12V, 2A
Power Consumption ≤ 18W
LED Indicator 1 x Blue system LED
Reset Button 1 x Factory reset button
Surge Protection ±2 kV
IP Rating IP41

Network & Software Features

Operating Modes Access Point Mode / Router Mode
Maximum SSIDs 8 per radio
VLAN 802.1Q supported
Roaming 802.11k / 802.11v / 802.11r
Layer 2 Roaming Supported
Layer 3 Roaming Supported
Client Isolation Supported
Wi-Fi Scheduling Supported
Speed Limiting Supported
Routing Features NAT, Static IP, DHCP Server, PPPoE
Captive Portal Supported
Bandwidth Limiting Supported
Mesh Management Supported

Security & Authentication

Wireless Security WPA, WPA2, WPA3-SAE
Encryption TKIP / AES
Authentication PSK, 802.1X
Enhanced Open OWE supported
Mixed Security Mode WPA2-PSK / WPA3-SAE

Cloud Management

Cloud Platform Lysora Cloud
Remote Management Lysora Cloud and Lysora App
Local Management Web interface and Lysora App
Maximum APs per Self-Organizing Network 300
Unified Network Management Supported
SNMP Supported
Network Optimization Channel, transmit power, and management frame power optimization

Environmental & Compliance

Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% RH, non-condensing
Storage Humidity 5% to 95% RH, non-condensing
NDAA Compliance Yes
Certifications FCC, IC
Safety Standard UL 62368-1:2019
RF Compliance FCC Part 2 Subpart J, FCC Part 15 Subpart E, IC RSS-247
EMC Compliance FCC Part 15 Subpart B, ICES-003

Note: Wireless throughput figures are theoretical maximums. Actual performance, coverage, and client capacity depend on installation environment, interference, connected devices, and network configuration. PoE injector and DC power adapter are sold separately.
