Description

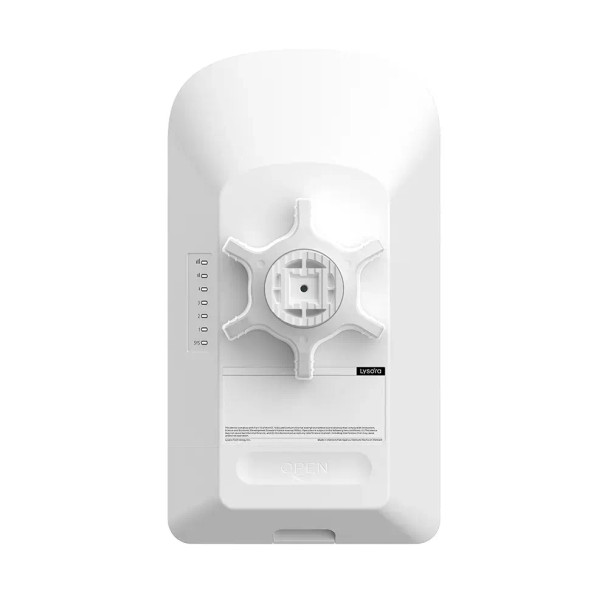

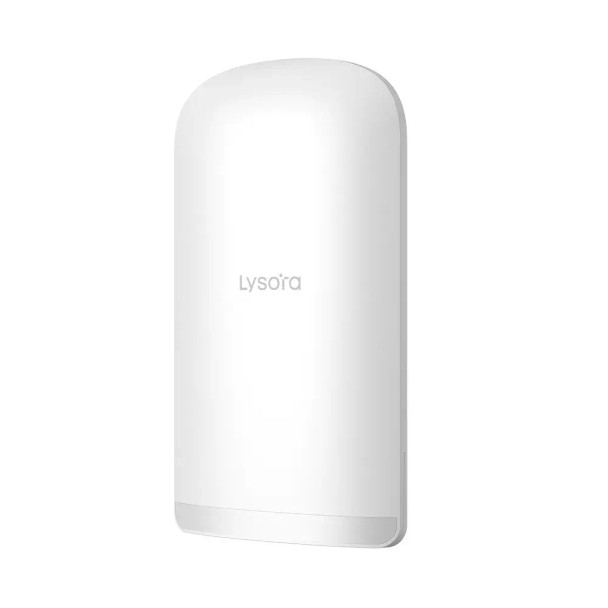

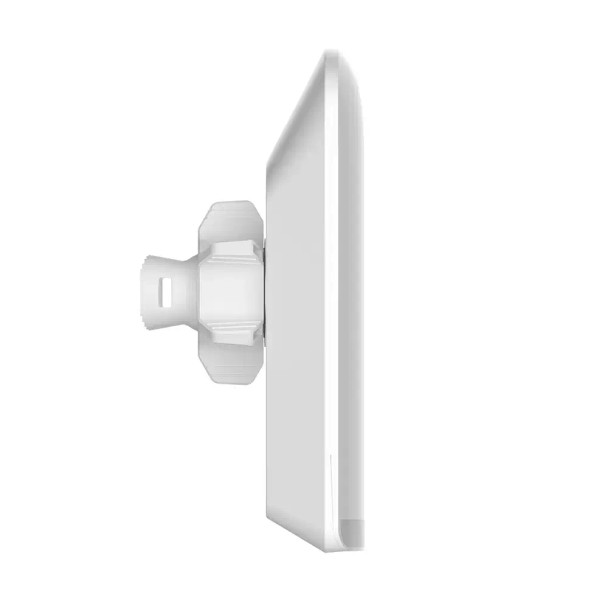

Lysora CPE5 5GHz Outdoor Wireless Bridge with 16dBi Directional Antenna

The Lysora CPE5 is a high-performance outdoor wireless bridge designed to extend network connectivity across long distances without the need for underground cabling. Ideal for connecting remote IP surveillance cameras, buildings, warehouses, parking lots, and other network locations, the CPE5 delivers reliable 5 GHz wireless connectivity with up to 867 Mbps theoretical wireless data rate.

Featuring a built-in 16 dBi directional antenna, up to 5 km (3.11 miles) transmission distance, and three Gigabit Ethernet ports, the CPE5 supports flexible point-to-point and point-to-multipoint network deployments. Its IP55-rated weather-resistant enclosure and Lysora Cloud management make it suitable for professional outdoor installations.

Key Features

5 GHz wireless bridge with up to 867 Mbps theoretical wireless data rate
Built-in 16 dBi high-gain directional antenna
Up to 5 km (3.11 miles) wireless transmission distance
Point-to-point (PTP) and point-to-multipoint (PTMP) deployments
TDMA technology supporting up to 5 CPE clients
3 x 10/100/1000 Mbps Gigabit Ethernet ports
IP55 weather-resistant enclosure for outdoor installations
Dual-core 880 MHz processor with 128 MB RAM
Maximum power consumption of 12W
Multiple power options including passive PoE and PoE/PoE+
Cloud-based monitoring and configuration through Lysora Cloud
Built-in antenna alignment and spectrum scanning tools
Wall or pole mounting options
NDAA compliant; FCC, IC, and cTUVus certified

Technical Specifications

General

Model	CPE5
Product Type	Outdoor Wireless Bridge CPE
Wi-Fi Standards	IEEE 802.11 a/b/g/n/ac
Dimensions	240 x 133 x 108 mm (9.45 x 5.24 x 4.25 in.), excluding mounting bracket
Net Weight	0.56 kg (1.24 lbs.)
Packaged Weight	2.55 kg (5.62 lbs.)
Maximum Transmission Distance	5 km (3.11 miles)
Mounting	Wall or pole
Deployment Modes	BaseStation and CPE

Wireless Performance

Wireless Frequencies	2.4 GHz and 5 GHz
Spatial Streams	3 total
2.4 GHz MIMO	1x1 SISO
5 GHz MIMO	2x2 MIMO
2.4 GHz Wireless Rate	Up to 300 Mbps (manufacturer listed)
5 GHz Wireless Rate	Up to 867 Mbps
2.4 GHz Channel Width	20/40 MHz
5 GHz Channel Width	20/40/80 MHz
2.4 GHz Antenna Gain	2 dBi
5 GHz Antenna Gain	16 dBi
Horizontal Antenna Beamwidth	31°
Vertical Antenna Beamwidth	14°
Maximum Transmit Power	20 dBm (2.4 GHz); 29 dBm (5 GHz)
TDMA	Supported
Point-to-Multipoint Clients	Up to 5 CPE clients
Antenna Alignment	Supported
Spectrum Scanning	Supported

Hardware & Interfaces

Processor	Dual-core, 880 MHz per core
RAM	128 MB
Flash Memory	16 MB
Ethernet Interfaces	3 x 10/100/1000BASE-T Gigabit ports
Status LEDs	1 x System LED, 3 x Ethernet LEDs, 3 x Signal LEDs
Reset Button	1

Power

Power Input Options	24V DC, 0.6A; 24V passive PoE; 12V DC, 1A; PoE/PoE+
Maximum Power Consumption	12W
PoE Power Pins	1-2 (+), 3-6 (-); 4-5 (+), 7-8 (-)
PoE Output	Not specified / no PoE output budget listed
Included Power Accessories	24V DC power adapter and passive PoE injector (manufacturer lists 2 each in package contents)

Software & Management

BaseStation Mode	Supported
CPE Mode	Supported
TDMA	Supported
Bridge SSID Hiding	Supported
VLAN	Supported
Antenna Alignment Tool	Supported
Spectrum Scan	Supported
Self-Organizing Network	Supported
Web Management	Supported
Cloud Management	Lysora Cloud
SSH	Supported
SNMP	Supported

Environmental & Compliance

Operating Temperature	-30°C to +55°C (-22°F to +131°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Operating Humidity	5% to 95% RH, non-condensing
Storage Humidity	5% to 95% RH, non-condensing
Weather Resistance	IP55
Service Port Surge Protection	±4 kV common mode
Power Connector Surge Protection	±4 kV common mode; ±2 kV differential mode
NDAA Compliant	Yes
Certifications	FCC, IC, cTUVus
Safety Standard	UL 62368-1:2019

Package Contents

CPE5 Wireless Bridge	1
24V DC Power Adapter	2 (manufacturer listed)
24V Passive PoE Injector	2 (manufacturer listed)
Mounting Screws	8 Phillips self-tapping screws, 4.2 x 19 mm
Mounting Brackets	2
User Manual	1
Warranty Card	1

Note: Wireless transmission distance and data rates are manufacturer-stated maximums. Actual performance depends on clear line of sight, antenna alignment, interference, environmental conditions, and network configuration. The 867 Mbps wireless data rate is theoretical and does not represent guaranteed real-world throughput. Specifications are subject to manufacturer updates.

Videos

Lysora CPE5 | Wireless Bridge for CCTV & SMB Deployments

Discover the Lysora CPE5 wireless bridge designed for reliable...

Warranty

This product comes with a 3-year limited warranty that covers defects in materials and workmanship under normal use. During this period, we will repair or replace, at no charge, any components that fail due to manufacturing issues. This warranty does not cover damages resulting from improper installation, misuse, accidents, or unauthorized repairs. For complete details, please refer to our full warranty policy.
