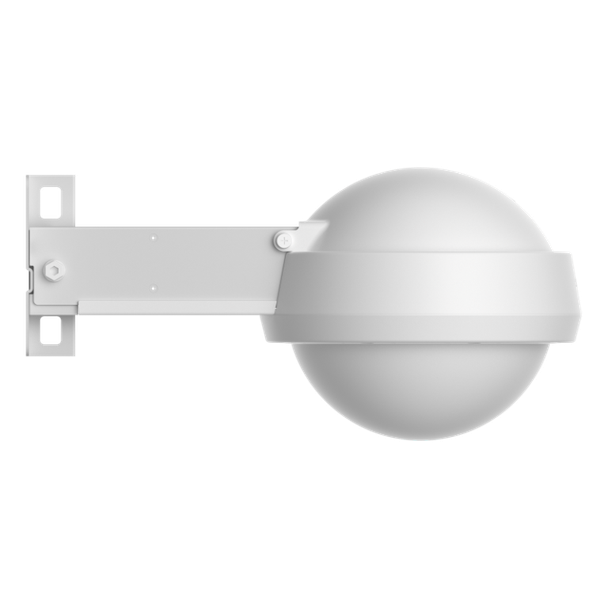

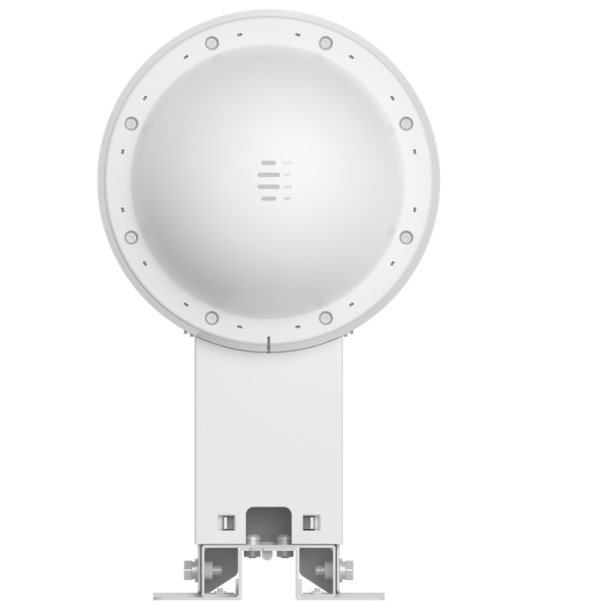

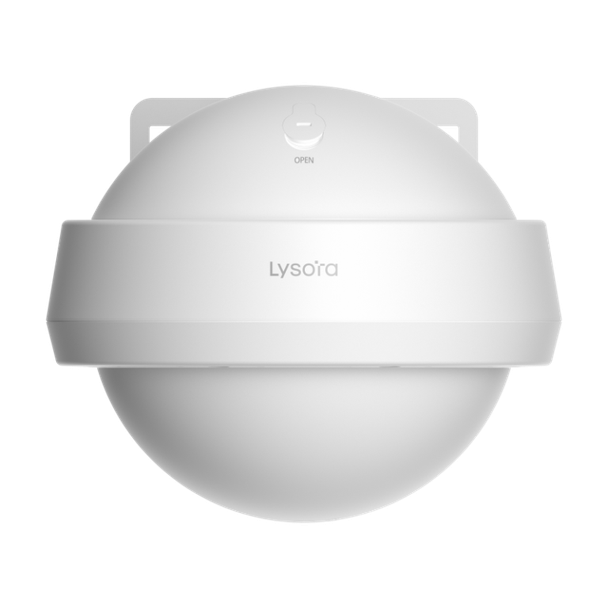

Lysora L6Pro-T Wi-Fi 6 AX3000 Outdoor Access Point
The Lysora L6Pro-T is a high-performance outdoor Wi-Fi 6 access point designed for medium- to high-density commercial wireless networks. It supports up to 512 users, 4 spatial streams, and combined wireless speeds of up to 2974 Mbps across the 2.4 GHz and 5 GHz bands.
With approximately 200 m² (2,150 ft²) of coverage, an IP68-rated enclosure, Gigabit Ethernet, and a dedicated 1GE SFP fiber port, the L6Pro-T is built for demanding outdoor Wi-Fi deployments where performance, durability, and flexible connectivity matter.
High-Capacity Outdoor Wi-Fi 6
Built on the Wi-Fi 6 (802.11ax) standard, the L6Pro-T provides the capacity and efficiency required for commercial environments with large numbers of simultaneously connected wireless devices.
- Up to 2974 Mbps — Combined wireless bandwidth across the 2.4 GHz and 5 GHz bands
- Up to 512 Users — Designed for medium- to high-density wireless environments
- 4 Spatial Streams — Increased wireless capacity for multiple connected devices
- Approx. 200 m² / 2,150 ft² Coverage — Built to provide broad outdoor wireless coverage
Ethernet + Fiber Connectivity
The L6Pro-T gives installers the flexibility to connect the access point using traditional copper Ethernet or fiber infrastructure.
- 1× Gigabit RJ45 Port — Supports 10/100/1000BASE-T Ethernet and 802.3at PoE input
- 1× Gigabit SFP Port — Provides fiber connectivity for installations requiring longer network runs or fiber infrastructure
Lysora Cloud Management
Configure and manage the L6Pro-T remotely through the Lysora Cloud Portal . Installers can configure customer networks before arriving onsite and continue managing deployed access points remotely after installation.
- Create and configure wireless SSIDs
- Adjust network and wireless settings remotely
- Pre-configure customer networks before installation
- Manage deployed access points through one cloud platform
Built for Demanding Outdoor Installations
The L6Pro-T features an IP68-rated enclosure for a high level of protection against dust and water ingress. Combined with 4kV surge protection, it is designed for demanding outdoor commercial installations where network equipment may be exposed to harsh environmental conditions.
Built for Multi-AP Networks
Support for Layer 2 and Layer 3 roaming makes the L6Pro-T well suited for larger deployments using multiple access points. Compatible wireless devices can move throughout the property while transitioning between access points, helping provide a more seamless Wi-Fi experience across the network.
Ideal Applications
- Apartment & Condo Communities
- Commercial Properties
- Campuses
- Outdoor Common Areas
- Warehouses & Industrial Properties
- Courtyards & Recreation Areas
- Large Outdoor Facilities
- Fiber-Based Network Deployments
PoE+ Powered
The L6Pro-T supports 802.3at PoE+, allowing power and network connectivity to be delivered over a single Ethernet cable. The access point consumes up to 24W, making it easy to deploy using a compatible PoE+ switch or injector.
Key Features
- Wi-Fi 6 (802.11ax) Outdoor Access Point
- AX3000 Dual-Band Wireless
- Up to 2974 Mbps Combined Wireless Speed
- Supports Up to 512 Users
- 4 Spatial Streams
- Approx. 200 m² / 2,150 ft² Coverage
- Dual-Band 2.4 GHz / 5 GHz
- 1× Gigabit RJ45 Ethernet Port
- 1× Gigabit SFP Fiber Port
- Lysora Cloud Remote Management
- Remote SSID & Network Configuration
- Layer 2 & Layer 3 Roaming
- AP & Routing Modes
- IP68-Rated Outdoor Enclosure
- 4kV Surge Protection
- 802.3at PoE+ Input
- Maximum Power Consumption: 24W
General
| Model |
L6Pro-T |
| Product Type |
Outdoor Wi-Fi 6 Access Point |
| Wi-Fi Standards |
IEEE 802.11 a/b/g/n/ac/ax |
| Dimensions |
230 mm diameter x 195 mm height (9.06 x 7.68 in.), excluding mounting bracket |
| Weight |
≤ 1.4 kg (3.09 lbs.) |
| Mounting |
Wall or pole (mounts included) |
| Maximum Clients |
512 combined (manufacturer-stated maximum) |
Wireless Coverage
| 5 GHz Maximum Coverage Radius |
400 m (1,312 ft.) |
| 2.4 GHz Maximum Coverage Radius |
150 m (492 ft.) |
| 5 GHz Recommended Coverage Radius |
200 m (656 ft.) |
| 2.4 GHz Recommended Coverage Radius |
50 m (164 ft.) |
| Coverage Conditions |
Manufacturer-stated values under ideal, unobstructed conditions |
Wireless Performance
| Frequency Bands |
2.4 GHz and 5 GHz |
| Spatial Streams |
4 total |
| 2.4 GHz MIMO |
2x2 MU-MIMO |
| 5 GHz MIMO |
2x2 MU-MIMO |
| 2.4 GHz Data Rate |
Up to 573 Mbps |
| 5 GHz Data Rate |
Up to 2,401 Mbps |
| Combined Data Rate |
Up to 2,974 Mbps |
| 2.4 GHz Channel Width |
20/40 MHz |
| 5 GHz Channel Width |
20/40/80/160 MHz |
| 2.4 GHz Antenna Gain |
3.00 dBi |
| 5 GHz Antenna Gain |
4.00 dBi |
| 2.4 GHz Maximum Transmit Power |
26 dBm |
| 5 GHz Maximum Transmit Power |
27.7 dBm |
| OFDMA |
Supported |
| RF Beamforming |
Supported |
| Band Steering |
Supported |
| Wireless Meshing |
Supported |
| Multi-Link Operation (MLO) |
Not supported |
| 4096-QAM (4K-QAM) |
Not supported |
Interfaces & Power
| Ethernet Interface |
1 x 10/100/1000BASE-T RJ45 (Gigabit Ethernet) |
| Fiber Interface |
1 x 1GbE SFP port |
| Power Input |
IEEE 802.3at PoE+ (recommended for full performance) |
| Alternative Power Input |
IEEE 802.3af PoE, with reduced wireless performance |
| Maximum Power Consumption |
≤ 24W |
| Status Indicator |
1 x Blue System LED |
| Reset Button |
1 x Factory Reset Button |
Software & Networking
| Operating Modes |
Access Point and Router |
| Maximum SSIDs |
8 per radio |
| VLAN |
802.1Q supported |
| Wireless Roaming |
802.11k/v/r |
| Layer 2 Roaming |
Supported |
| Layer 3 Roaming |
Supported |
| Client Isolation |
Supported |
| Wi-Fi Scheduling |
Supported |
| Wi-Fi Multimedia (WMM) |
Supported |
| Captive Portal |
Supported |
| Bandwidth Limiting |
Supported |
| Data Quota |
Not supported |
| Routing Features |
NAT, DHCP Server, Static IP, PPPoE |
| Network Diagnostics |
Ping and Traceroute |
| Mesh Management |
Supported |
Security
| Wireless Security |
WPA (TKIP), WPA2 (AES), WPA3-SAE, OWE |
| Authentication |
PSK and 802.1X |
| Mixed Security Mode |
WPA2-PSK/WPA3-SAE |
| Client Device Isolation |
Supported |
Management
| Cloud Management |
Lysora Cloud |
| Mobile Management |
Lysora App |
| Local Management |
Web Interface |
| SNMP |
Supported |
| Network Optimization |
Channel, transmit power, and management frame power optimization |
| Self-Organizing Network |
Up to 300 APs |
| Unified Network Management |
Supported |
| Cloud Configuration & Monitoring |
Supported |
Environmental & Compliance
| Operating Temperature |
-30°C to +65°C (-22°F to +149°F) |
| Storage Temperature |
-40°C to +75°C (-40°F to +167°F) |
| Operating Humidity |
5% to 95% RH, non-condensing |
| Storage Humidity |
5% to 95% RH, non-condensing |
| IP Rating |
IP68 |
| Surge Protection |
±4 kV |
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC, cTUVus |
| Safety Standard |
UL 62368-1:2019 |
Note: Wireless data rates are theoretical maximums and do not represent guaranteed real-world throughput. Wireless coverage distances are manufacturer-stated values measured under ideal, unobstructed conditions. Actual performance depends on client devices, interference, antenna placement, and installation environment. Wi-Fi 6 features require compatible devices. When powered by IEEE 802.3af PoE, wireless performance is reduced according to manufacturer specifications. For full performance, use IEEE 802.3at PoE+. Specifications are subject to manufacturer updates.
